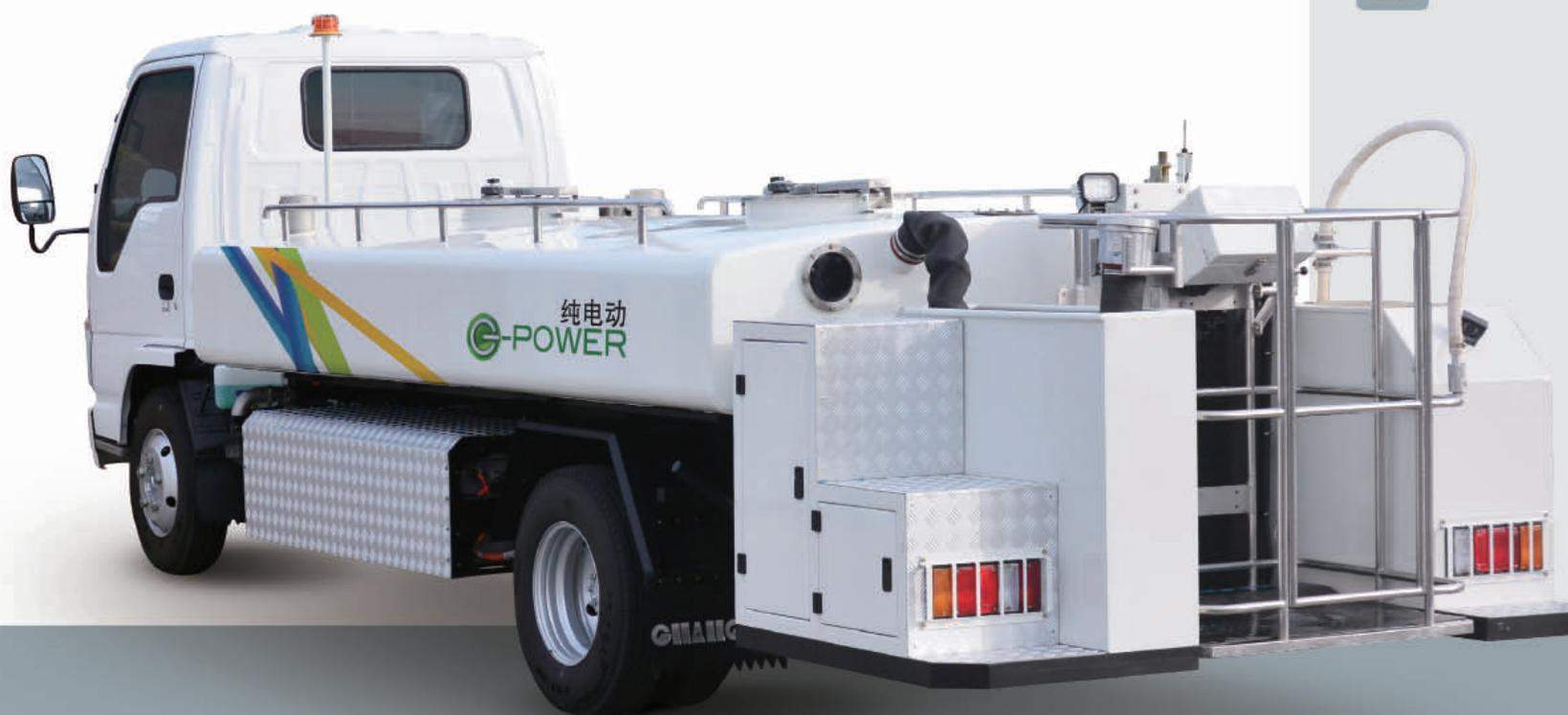

GWS40D Electric Lavatory Service Truck

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

The GWS40D All Electric Lavatory Service Truck is designed to safely and efficiently service all aircraft types, cost effectively and emission free.

Safety

  • Automatic Fire Suppression;
  • Split power systems;
  • High temperature protection;
  • Insulation Monitoring, under voltage, short circuit protection;
  • Interlock protection between charging and driving function;
  • Power off when the driver is absent.

APPLICABLE

Applicable to all known civil aircraft types.

Product Parameters
MAIN CONFIGURATION OPTIONAL
Chassis ISUZU Winterization Kit, Flowmeter,
Rear Lifting Platform, Rear Lifting Platform,
Reversing Camera,
Reversing Radar,
Driving Recorde
Telemetry
Battery CATL, LFP battery
Battery Capacity 618.24V / 173Ah / 106.95kWh

PARAMETERS

Dimensions 7,100mm × 2,100mm × 2,200mm
Clean Water Tank Capacity 1,200 L
Lavatory Tank Capacity 3,000 L
Flow Rate 170 Lpm
Supplying Pressure 0.35 MPa
Max. Driving Speed 90 km/h
Travel Range 305 km
Charging Time min. 1 h
Temperature Range -35-60°C
