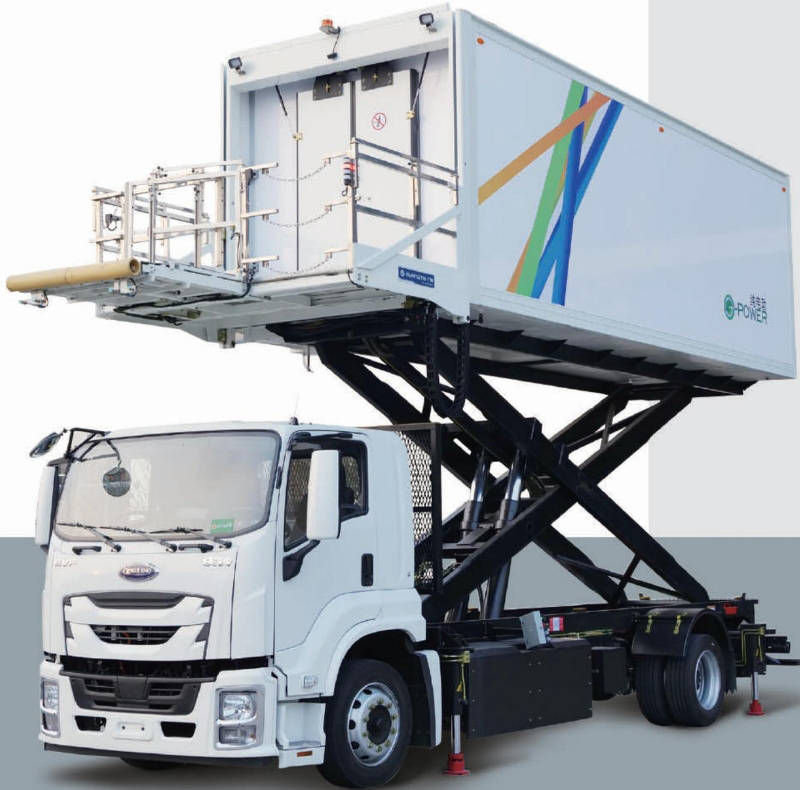

GSP60D Electric Catering Truck

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

The new GSP60D All-Electric Catering Truck is your best option for efficient, environmentally friendly and low maintenance food supply to all aircraft with door sills from 2,700mm to 6,000mm.

  •  LFP Battery
  •  High Voltage System
  •  Low Temperature Suitable
  •  Automatic Fire Suppression
  •  Telemetry
  •  Aircraft Damage Prevention System

Safety

  • Automatic Fire Suppression;
  • Anti-drop-down pin, protecting the staff during maintenance;
  • Audible alarms when lifting/lowering the van body and extending/retracting stabilizers;
  • Hydraulic and manual locks of lifting cylinders to prevent van body from descending;
  • Interlocks between driving function and positions of vanbody, stabilizers and PTO, etc.
Product Parameters
MAIN CONFIGURATION   OPTIONAL
Chassis ISUZU

Canopy
Roll-up Door
Integrally molded van
Inner vanbody nano treatment

360° Panorama Camera
Telemetry
Battery CATL, LFP battery
Battery Capacity 540.96V / 456Ah / 246.47kWh
Refrigerator Supersnow / Thermo King

APPLICABLE

  GSP60D
B737
B747
B757
B767
B777
B787
A319
A320
A330
A340
A350
C919

PARAMETERS

Lifting Height 2650-6100/2670-6000mm
Lateral Range of Movable Platform 0-700/0-800mm
Telescopic Range of Movable Platform 600 mm
Rated Load of Fixed Platform 1,800 kg
Rated Load of Van 6,000 kg
Max. Load of Movable Platform 700 kg
Dimensions of Van (L×W×H) 7,500 mm × 2,525 mm × 2,400 mm
Performance per Battery Cycle 390/420km
Charging Time min. 2 h
