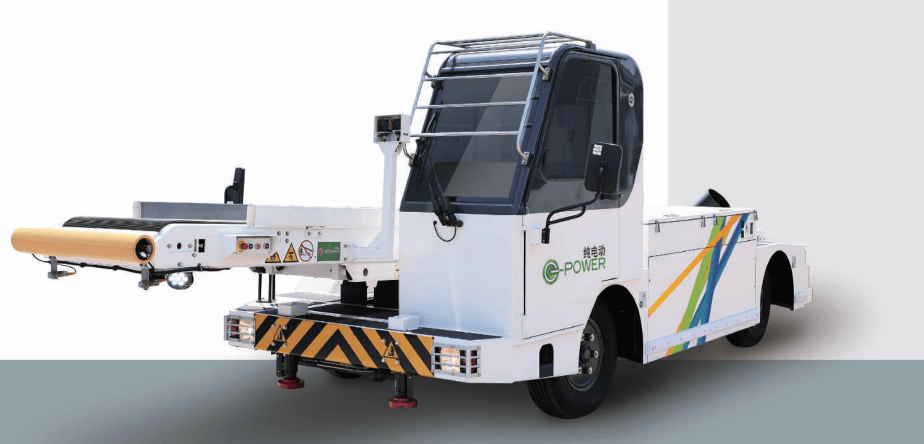

GJS70D Electric Conveyor Belt Loader LFP Battery

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

The GJS70D Electric Baggage Conveyor Belt Loader is the environmentally friendly, custom-designed solution for the loading and unloading of baggage and bulk cargo, and suitable for use on all aircraft.

  • LFP Battery
  • High Voltage System
  • Low Temperature Suitable
  • Automatic Fire Suppression
  • Telemetry
  • Aircraft Damage Prevention System

Safety

  • Automatic Fire Suppression;
  • Split power systems;
  • Battery high temperature protection;
  • Insulation monitoring, under voltage, short circuit protection;
  • Interlock protection between charging and driving function;
  • Drive motor automatically cuts off when the driver is absent.

APPLICABLE

Applicable to all known civil aircraft types.

Product Parameters
MAIN CONFIGURATION OPTIONAL
Battery CATL, LFP battery Stabilizers
Motor PMBL motor Canopy Telemetry
Battery Capacity 405.72V / 173Ah / 70.18kWh Cabin
Front Axle Damper


PARAMETERS

Lifting Height - Front Boom 1,080 ~ 4,240 mm
Lifting Height - Rear Boom 425 ~ 1,390 mm
Transfer Speed 9.6 ~ 30 m/min
Belt Width 700 mm
Belt Loading Capacity 135 kg/m
Dimensions 8,010mm × 2,170mm × 1,960mm
Min. Turning Radius 7,200 mm
Max. Driving Speed 28 km/h
Weight 4,160 kg
Charging Time min. 0.5 h
Performance per Battery Cycle Small Airport: 247km + 366 t
Medium Airport: 246km + 369 t
Large Airport: 246km + 369 t
Temperature Range -35-60°C
