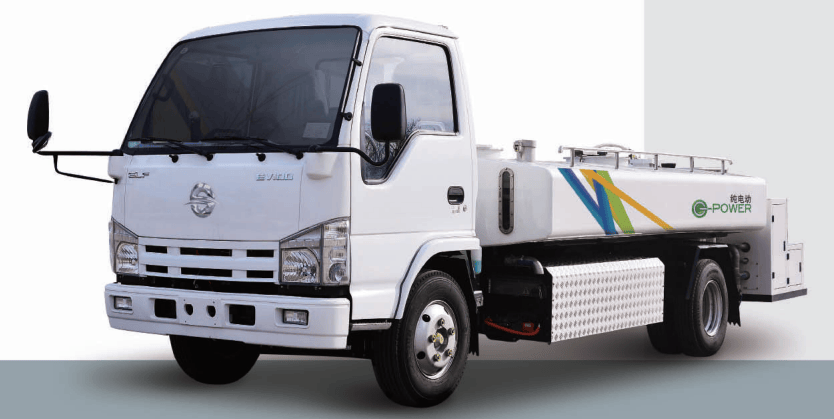

GGS40D Electric Potable Water Truck

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

The GGS40D All Electric Potable Water Truck is used for the cost effective and efficient supply of potable water to all civil aircrafts types. The compact and low profile design allows for safe ease of access in every situation.

  • LFP Battery
  • High Voltage System
  • Low Temperature Suitable
  • Automatic Fire Suppression
  • Telemetry

Safety

  • Automatic Fire Suppression;
  • Split power systems;
  • High temperature protection;
  • Insulation Monitoring, under voltage, short circuit protection;
  • Interlock protection between charging and driving function;
  • Power off when the driver is absent.

APPLICABLE
Applicable to all known civil aircraft types.

Product Parameters
MAIN CONFIGURATION OPTIONAL
Chassis ISUZU electric chassis Winterization Kit, Flowmeter,
Rear Lifting Platform, Disinfection Case,
Reversing Camera,
Reversing Radar,
Driving Recorde
Telemetry
Battery CATL, LFP battery
Battery Capacity 618.24V /173Ah / 106.95kWh

PARAMETERS

Dimensions 7,075mm × 2,100mm × 2,200 mm
Water Tank Capacity 4,000 L
Flow Rate 170 Lpm
Supplying Pressure 0.35 MPa
Max. Driving Speed 90 km/h
Travel Range 300 km
Charging Time min. 1 h
Temperature Range -30-60°C
