Suitable for Gas Zone 1, Dust Zone 21. XY800_DR is an explosion-proof monitor terminal. Widely be used in hazardous locations, such as petroleum, chemical, pharmaceutical, and etc.
1/1
Video
Images
Agent Recruitment

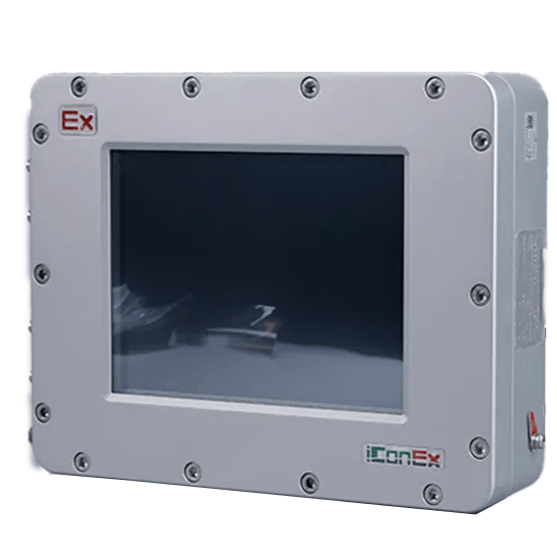

XY800 Explosion-proof Monitor
Negotiable
China
Room 301, Block B, Daoxing Global Technology Building, Xin'an Subdistrict, Bao'an District, Shenzhen, Guangdong Province, P.R.China
+8615630439227
+8615220070378
luyouxia@xyiconex.com
Product Introduction
Technical Parameters
XY800_7
XY800_10
XY800_12
XY800_15
XY800_17
XY800_19
XY800_15B
XY800_19B
XY800_22

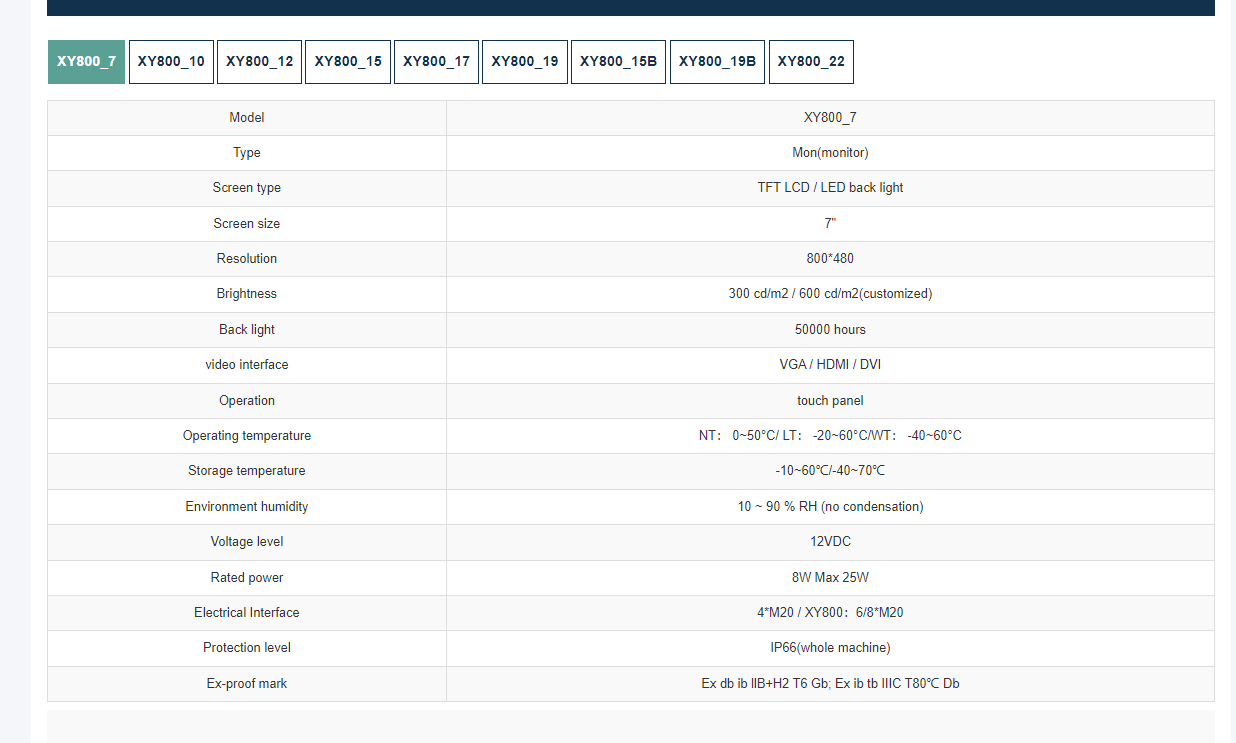

| Model | XY800_7 |
| Type | Mon(monitor) |
| Screen type | TFT LCD / LED back light |
| Screen size | 7" |
| Resolution | 800*480 |
| Brightness | 300 cd/m2 / 600 cd/m2(customized) |
| Back light | 50000 hours |
| video interface | VGA / HDMI / DVI |
| Operation | touch panel |
| Operating temperature | NT: 0~50℃/ LT: -20~60℃/WT: -40~60℃ |
| Storage temperature | -10~60℃/-40~70℃ |
| Environment humidity | 10 ~ 90 % RH (no condensation) |
| Voltage level | 12VDC |
| Rated power | 8W Max 25W |
| Electrical Interface | 4*M20 / XY800：6/8*M20 |
| Protection level | IP66(whole machine) |
| Ex-proof mark | Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80℃ Db |
