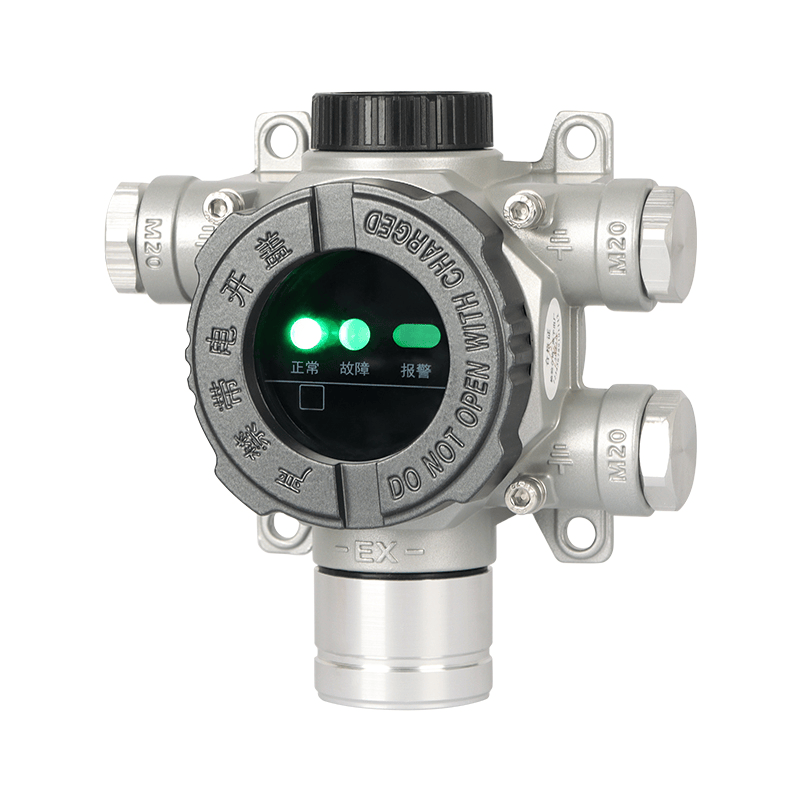

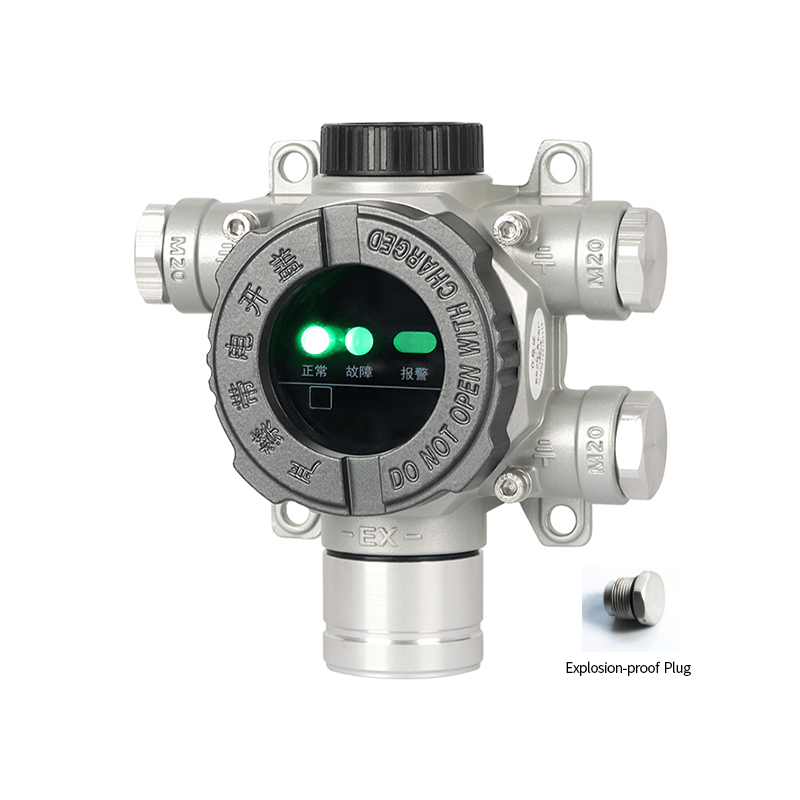

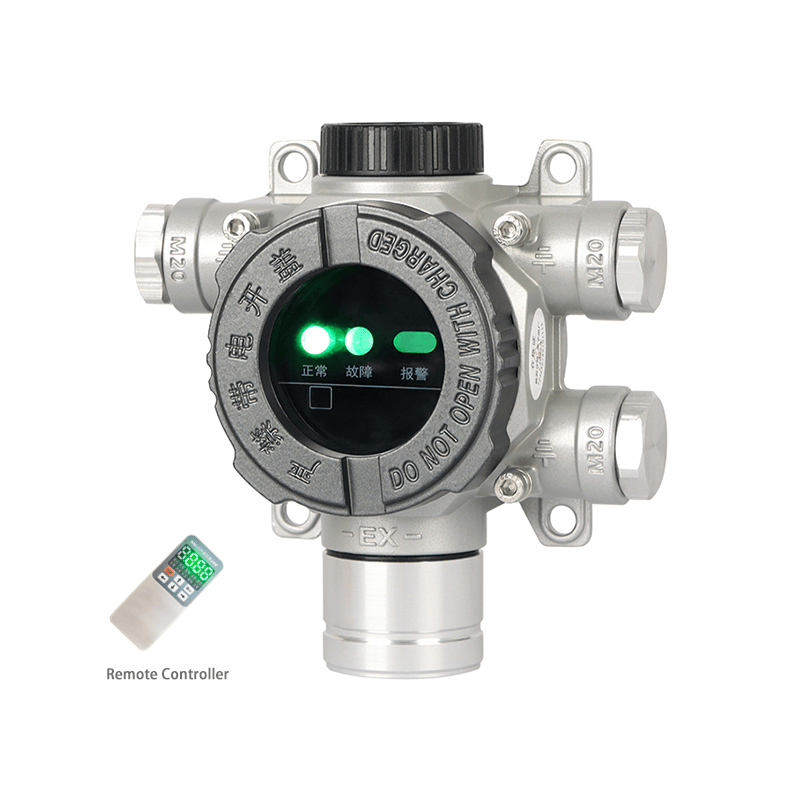

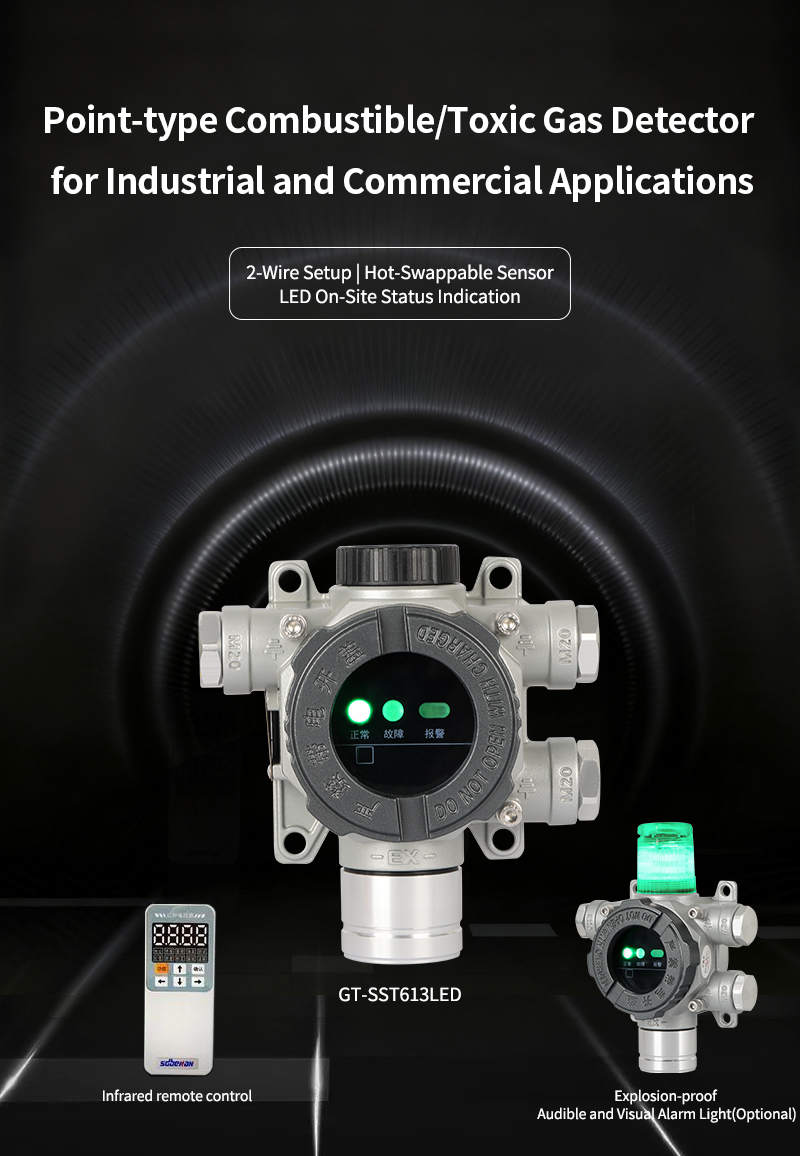

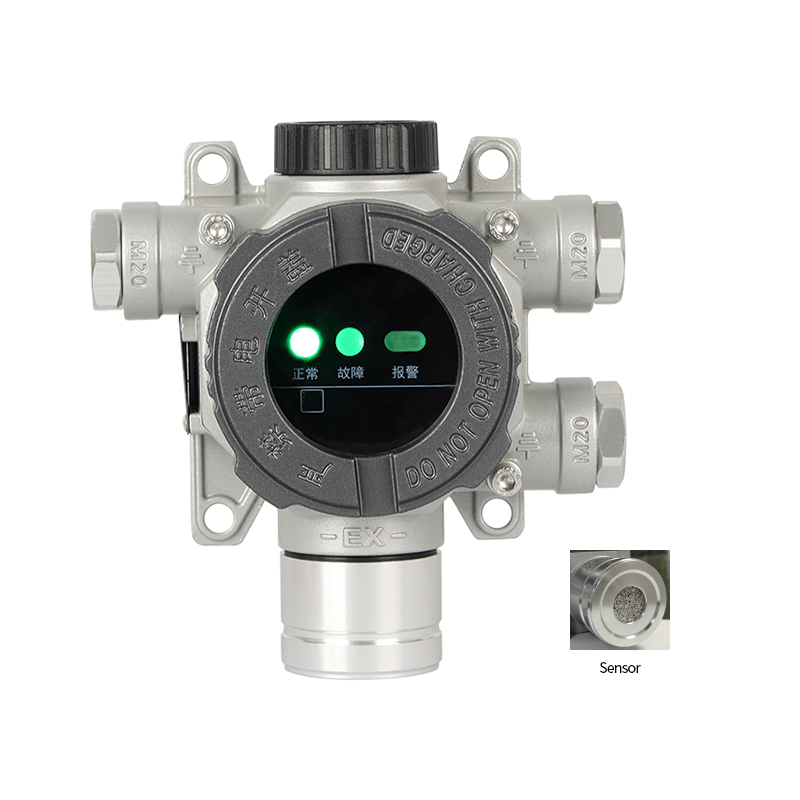

GT-SST613LED-E Point-type Combustible Gas Detector

EXW
$100.00-101.00 /pcs
China
No. 169, Helin Street, Gaoxin District, Jinan of China
86 13752227265
Online Contact
Favorite
Product Introduction

Product Description:

The GT-SST613LED-E gas detector continuously monitors methane gas within the lower explosive limit (LEL) range in industrial and commercial environments. It converts gas concentration and system information into current signals, which are then transmitted to the gas alarm controller system for identification, display, and processing.



Product Features:

※ The detector adopts high-quality gas-sensing components, featuring stable performance, high sensitivity, and excellent anti-toxicity resistance.

※ LED on-site status indication: green light on for "normal", yellow light on for "fault", and red light on for "alarm".

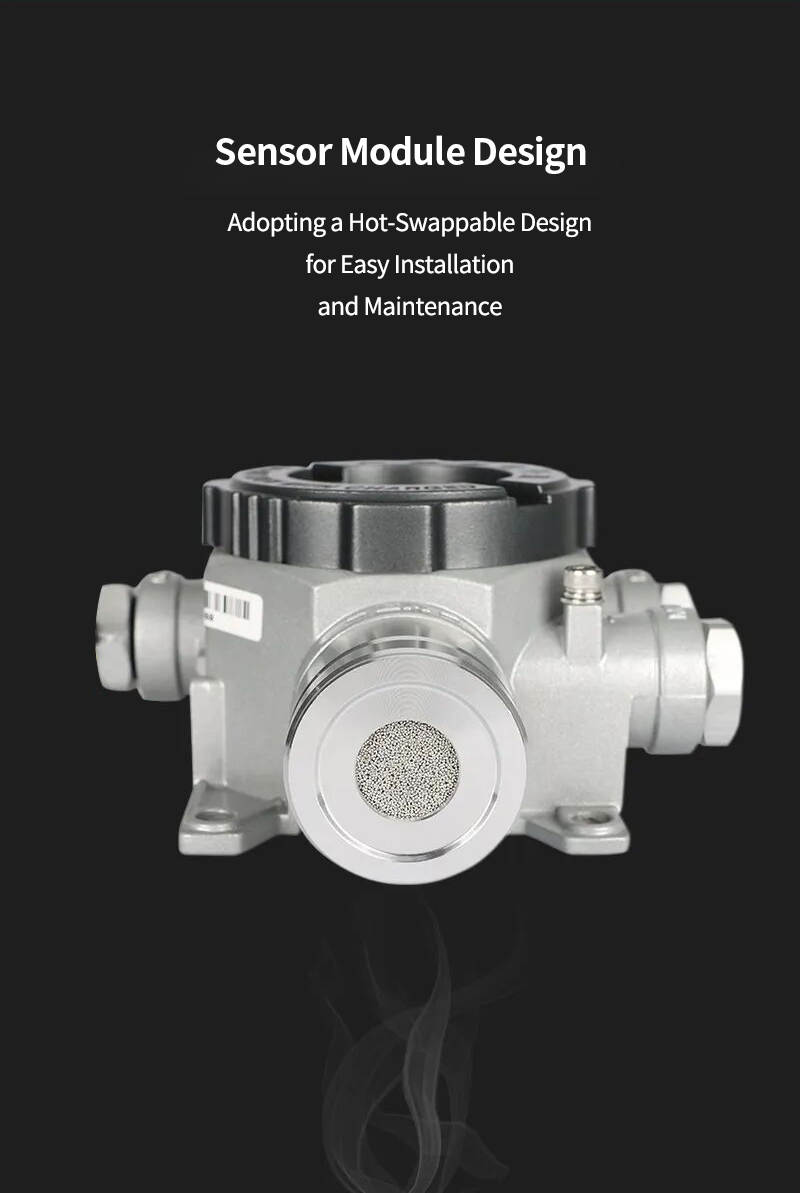

※ The sensor module features a hot-swappable design, facilitating easy installation and maintenance. After replacing the module, it can be used directly without the need for recalibration.



Application Scenarios:

Widely applied in large shopping malls, large restaurants, food processing factories, pharmaceutical factories, automobile manufacturing plants, small industrial and commercial users (small venues such as snack bars, hairdressing and beauty salons, hotels, public bathhouses and Internet cafes), farmers' markets and other industrial and commercial premises where gas leakage may occur.



Technical Parameters
Rated Voltage DC 24V
Detected Gas Methane
Detection Principle Catalytic Combustion, Infrared
Response Time T90 ≤ 30s
Error ±3% LEL
Communication Method 4-20mA
Display Type None
Resolution 1%LEL
Power Consumption ≤ 3W
Measuring Range 3% LEL~100% LEL
Alarm Method Indicator Light (Explosion-Proof Audible and Visual Alarm Light Optional)
Operating Temperature -40°C~70°C
Operating Humidity ≤ 96% RH (No Condensation)
Pressure Range 86kPa~106kPa
Installation Method Fixed Bracket Type, Pipe-Mounted Type, Wall-Mounted Type
Installation Thread M20×1.5
Dimensions 177mm×140mm×80mm
Explosion-Proof Mark Ex db II C T6 Gb; Ex tb III C T80°C Db
IP Rating IP66
Executive Standard GB 15322.1-2019
