Unit-type, gas-insulated metal-enclosed ring-network switchgear for 12 kV, three-phase 50 Hz distribution and ring-network systems, designed for urban grids, prefabricated / compact substations and renewable-energy collection. A sealed gas compartment (IP67, ≤ 0.01 % annual leakage) houses the load-break switch, giving a maintenance-free, compact and fully interlocked unit with a 10 000-operation mechanical life.
1/2

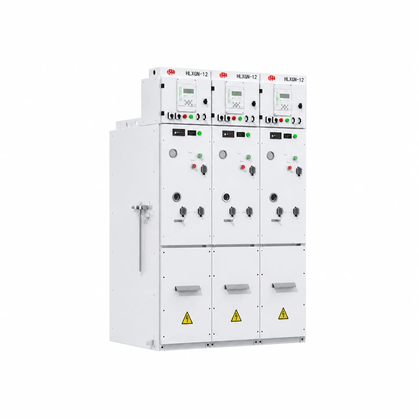

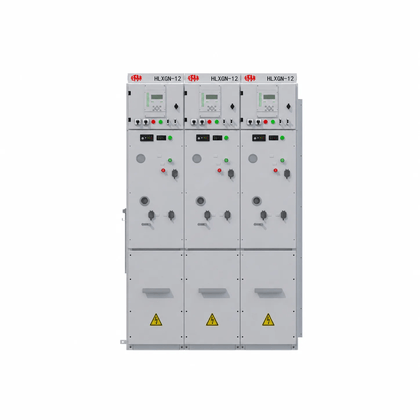

HLXGN-12 Gas-Insulated Ring Main Unit (12 kV)
EXW
$2,600.00-3,000.00 /Set
China
No. 388 Quanshun Road, Xiaolan Economic and Technological Development Zone, Nanchang County, Nanchang City, Jiangxi Province
18379983771
+86 13060075509
597108072@qq.com
Product Introduction
Technical Parameters
Key Specifications
Standards IEC 62271-200 / -1 (ref. GB 3906)
Rated Voltage 12 kV
Rated Frequency 50 Hz
Rated Current 630 A
Power-frequency Withstand 42 / 48 kV (isolation gap)
