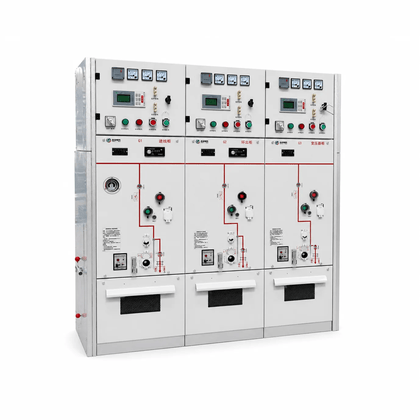

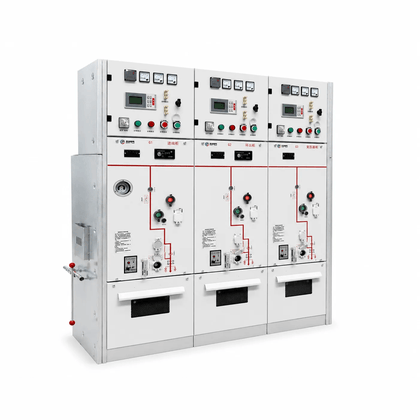

HLC-12 Gas-Insulated Modular RMU / C-GIS (12 kV)

EXW
$1,925.00-2,518.00 /Set
Jiangxi Harrl Group Co., Ltd.
China
No. 388 Quanshun Road, Xiaolan Economic and Technological Development Zone, Nanchang County, Nanchang City, Jiangxi Province
18379983771
+86 13060075509
Online Contact
Favorite
Product Introduction

A gas-insulated, fully sealed modular ring-main unit (C-GIS style) for 12 kV ring-network and cable distribution. Built from independent functional units — C (load-switch / cable), F (load-switch-fuse) and V (vacuum circuit breaker) — so configurations can be combined per project. A pressurized gas tank (IP67, ≤ 0.01 % annual leakage) and IK10-rated, IP54 switchgear body deliver a compact, maintenance-free unit for urban and underground networks.

Technical Parameters

Key Specifications

Standards IEC 62271-200 (ref. GB 3906)
Rated Voltage 12 kV
Rated Frequency 50 Hz
Rated CurrentC: 630 A · F: 125 A · V: 630 / 1250 A
Power-frequency Withstand 42 / 48 kV (isolation gap)
