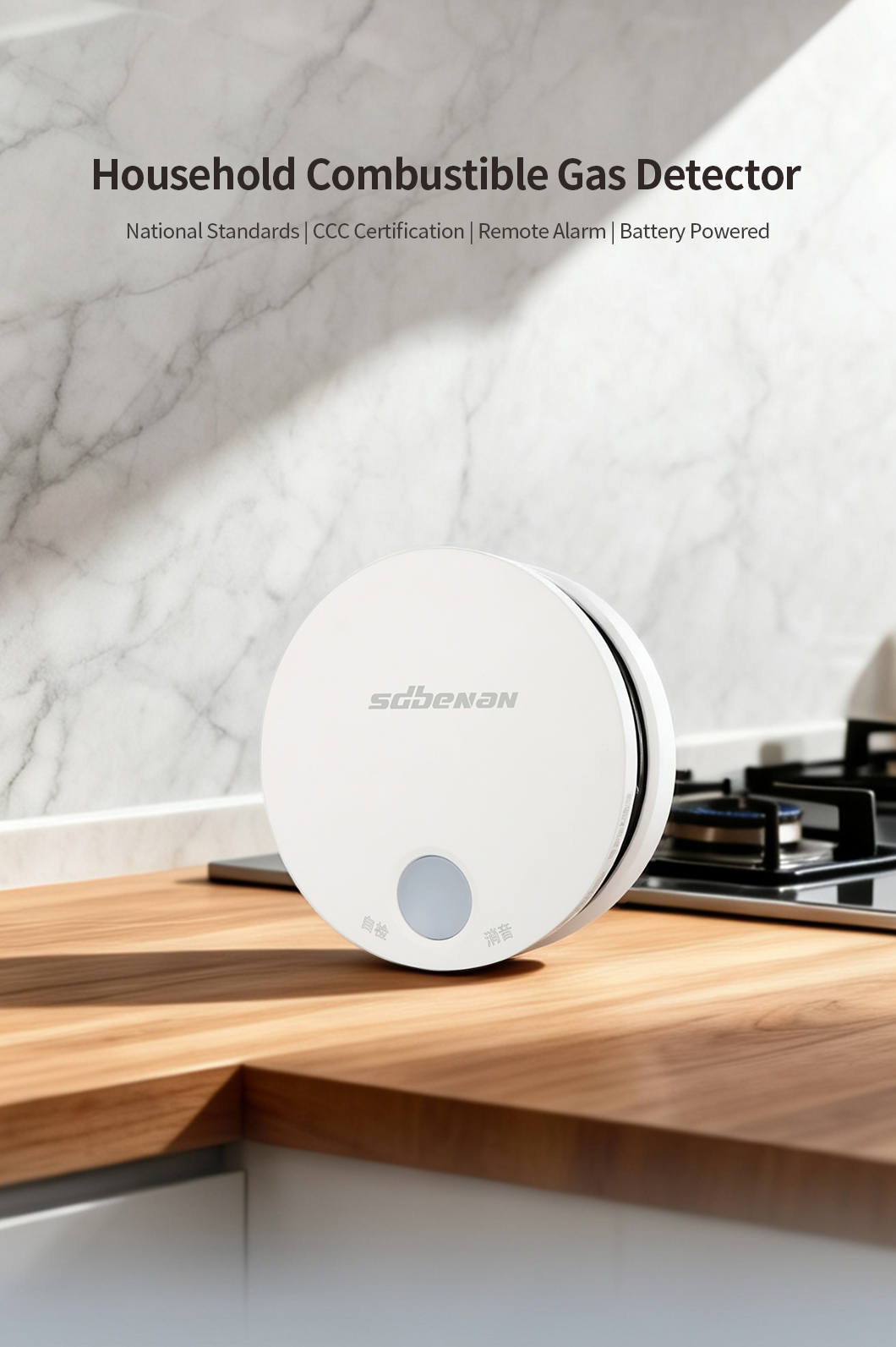

JTM-SSJ16YG-BAT-E Household Combustible Gas Detector

Negotiable
China
No. 169, Helin Street, Gaoxin District, Jinan of China
86 13752227265
+008613752227265
Online Contact
Favorite

Product Introduction

Product Overview:

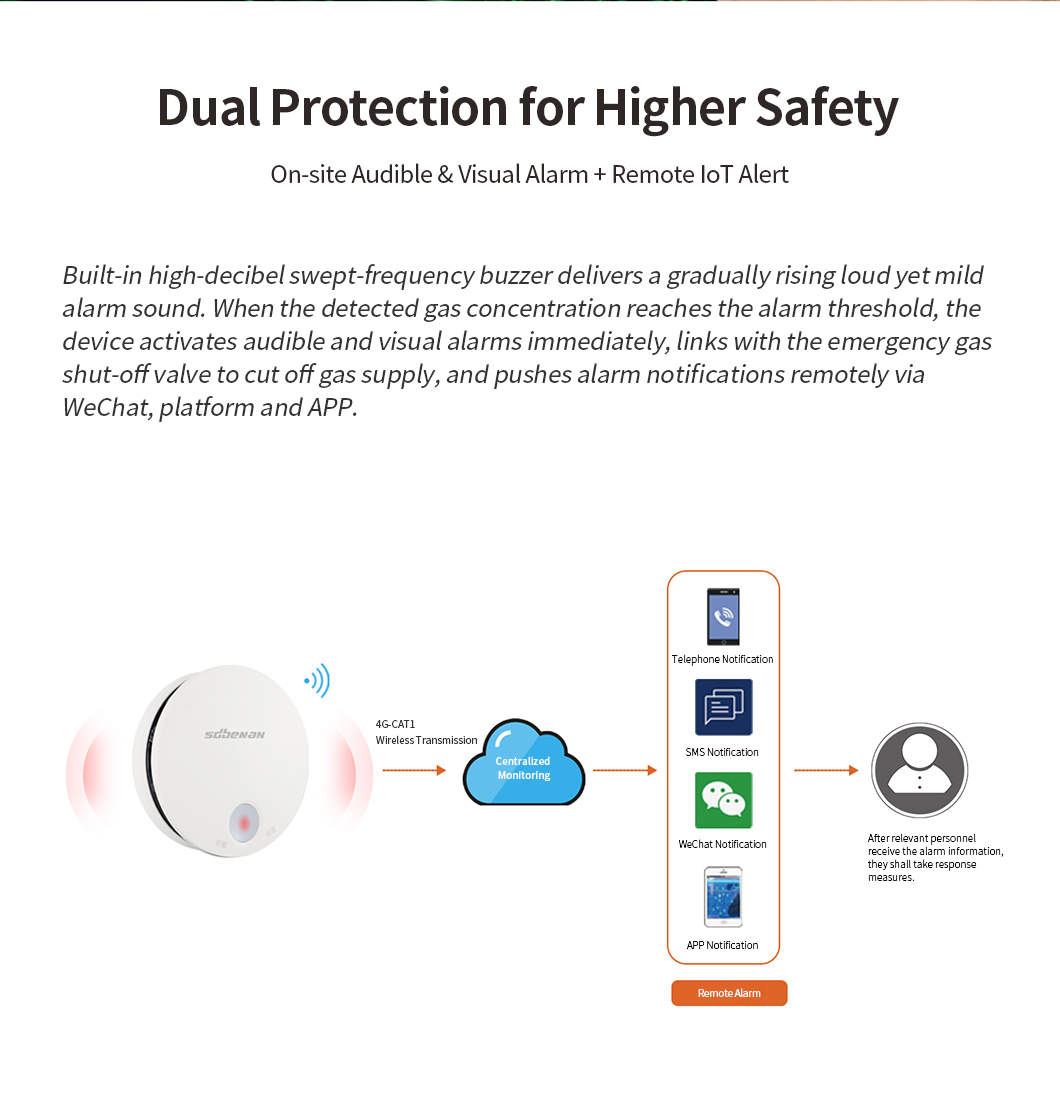

The JTM-SSJ16YG-BAT-E Household Combustible Gas Detector is designed in accordance with the national standard GB15322.2-2019. It can detect the on-site gas concentration in real time and determine whether the gas concentration exceeds the alarm threshold; if it exceeds the alarm threshold, the device emits audible and visual alarm signals and pushes alarm notifications via WeChat, platforms, and apps. It is suitable for monitoring household methane, carbon monoxide, and airborne particulate matter (such as oil fumes generated by dry-heating cookware) (also measures temperature and humidity).




Product Features:

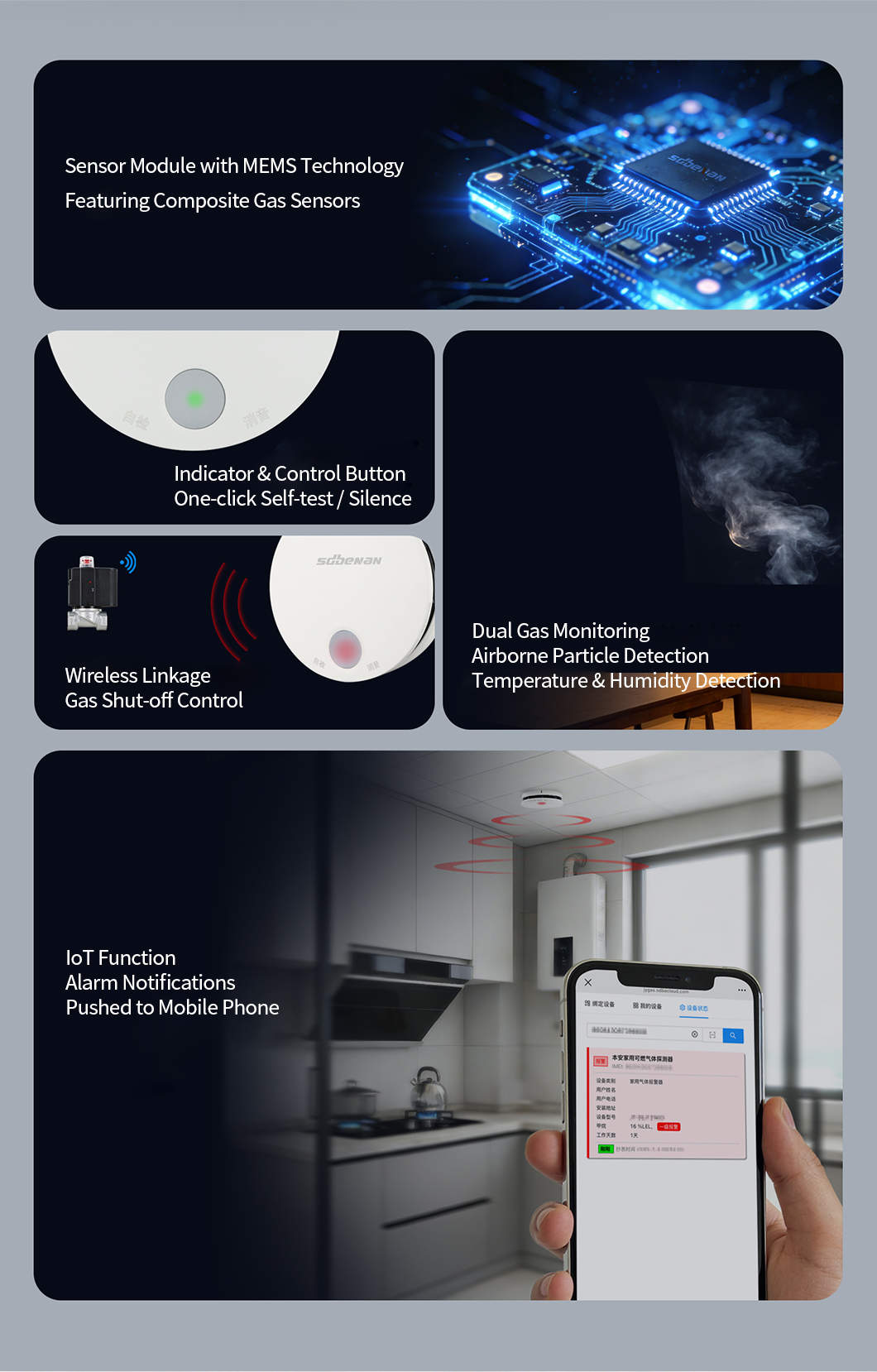

※ The sensor module adopts a composite sensor with high precision, high integration, and high reliability.

※ Linear output of concentration values, high sensitivity, stable performance, strong resistance to poisoning, and strong anti-interference capability.

※ User-friendly alarm sound, using an easily recognizable fire alarm tone that gradually increases in volume, providing a gentle reminder to avoid startling users.

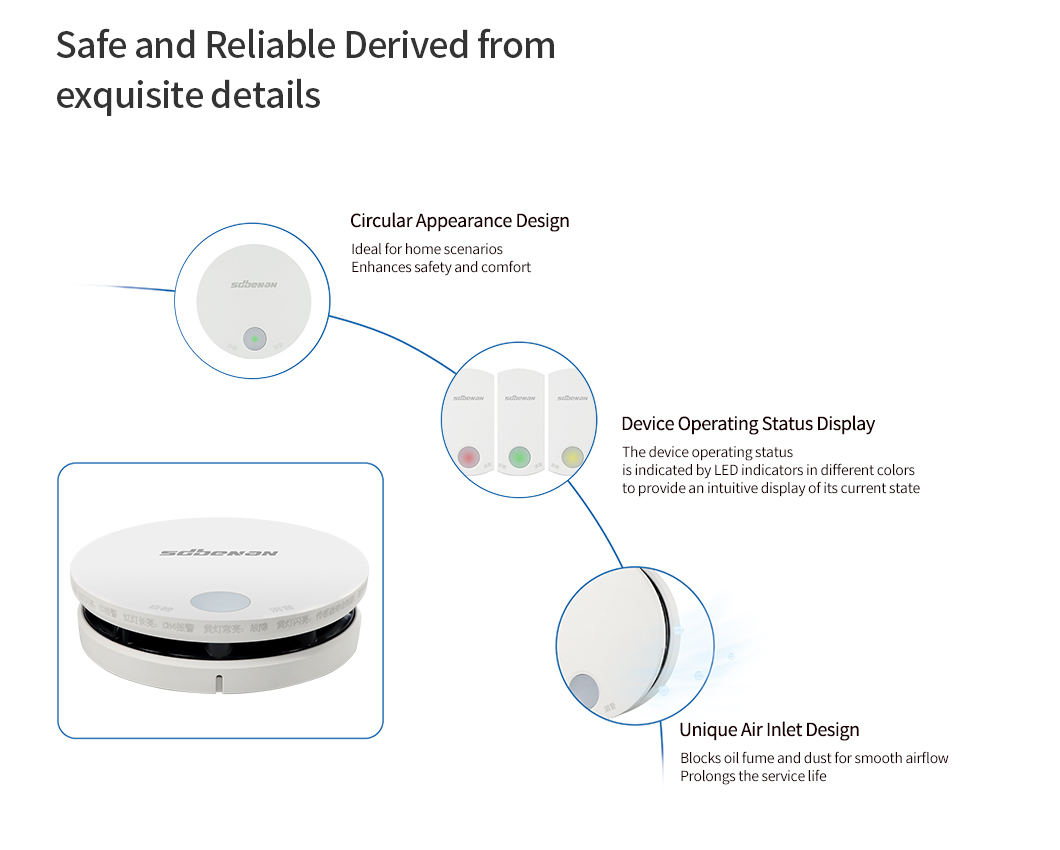

※ Manufactured with advanced electronic technology and refined craftsmanship, with different statuses indicated by high-brightness focused LEDs in different colors.

※ Lighter weight for more convenient wall-mounting or adhesive installation.

※ Wireless valve control, low power consumption, simple operation, and easy maintenance.

Product Parameters

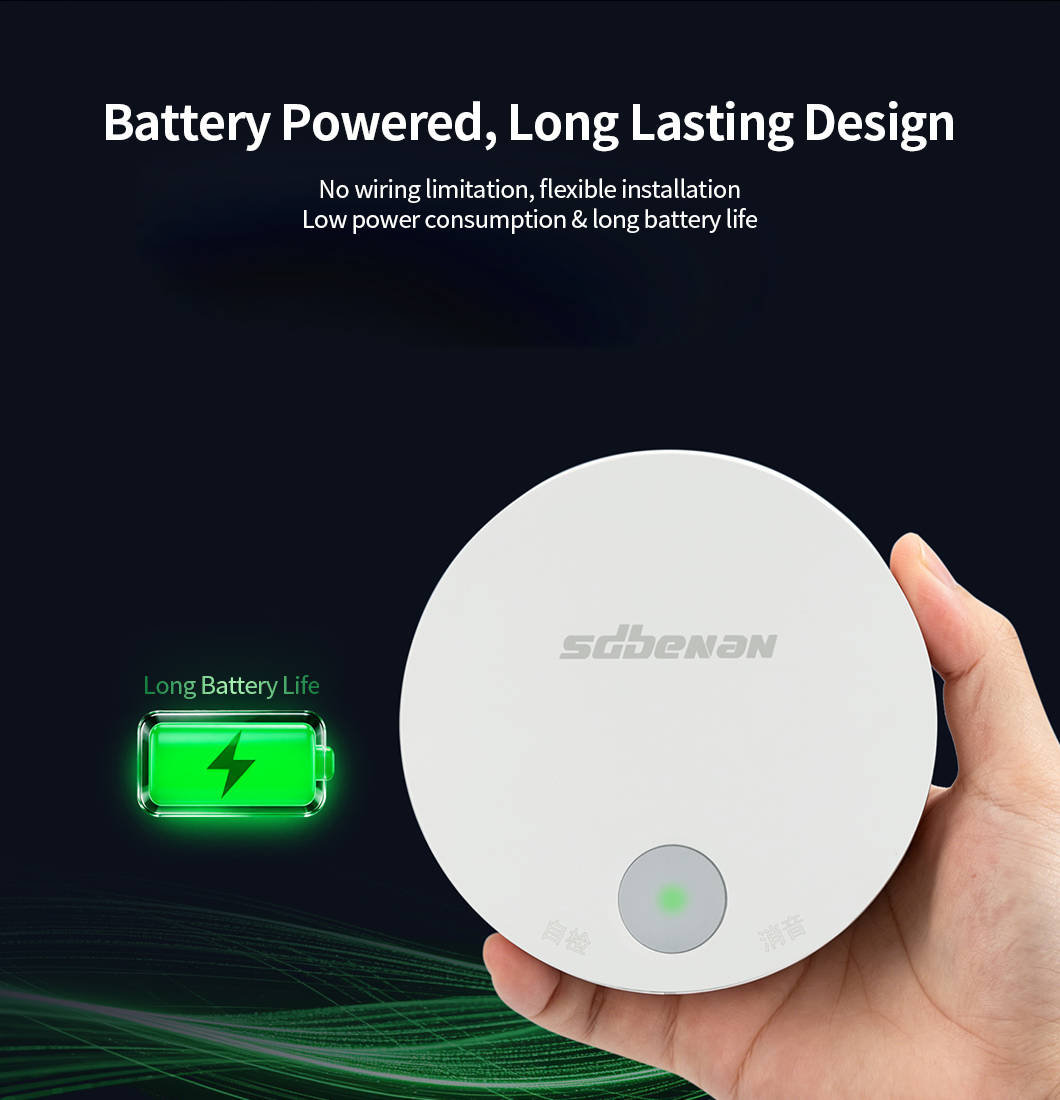

Operating Voltage DC3.0V
Output Interface One set of 2.4G wireless output
Alarm Setpoint CH4: 8%LEL, CO: 200×10-6 (volume fraction), M value: 0.6dbm
Detected Gas

Methane, carbon monoxide, airborne particulate matter, temperature, humidity

Measuring Range CH4: 0~16%LEL, CO: (0-1000)×10-6 (volume fraction)
Error CH4: ±3%LEL, CO: ±50×10-6 (volume fraction)
Alarm Method Audible and visual alarm
Sampling Method Free diffusion type
Communication Method 4G-CAT1
Operating Temperature -10°C~55°C
Operating Humidity ≤93%RH (non-condensing)
Dimensions Φ105.5mmx30mm

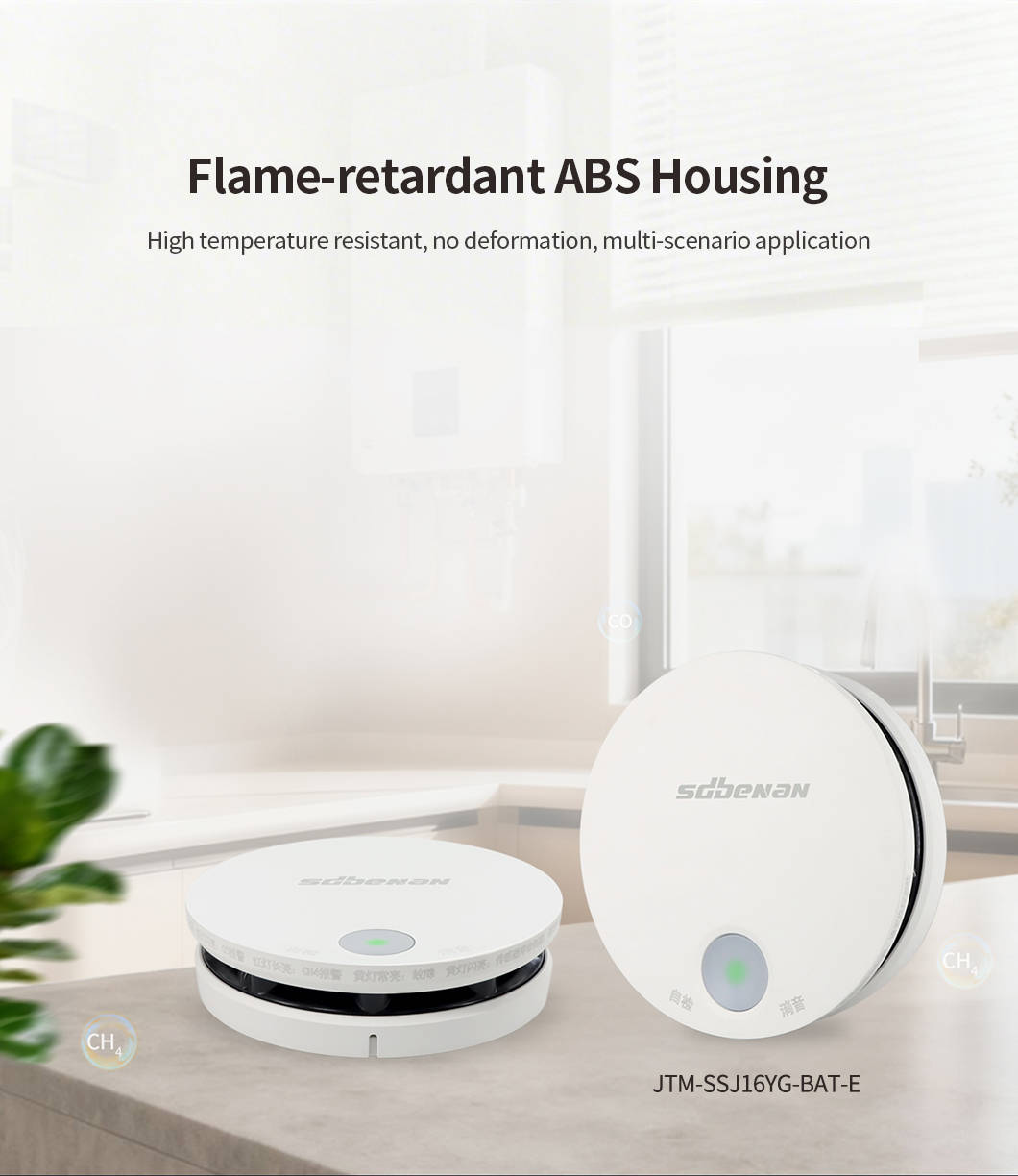

Material ABS
Installation Method Wall-mounted / Ceiling-mounted
Applicable Standard GB 15322.2-2019

Product Details



Our Advantages

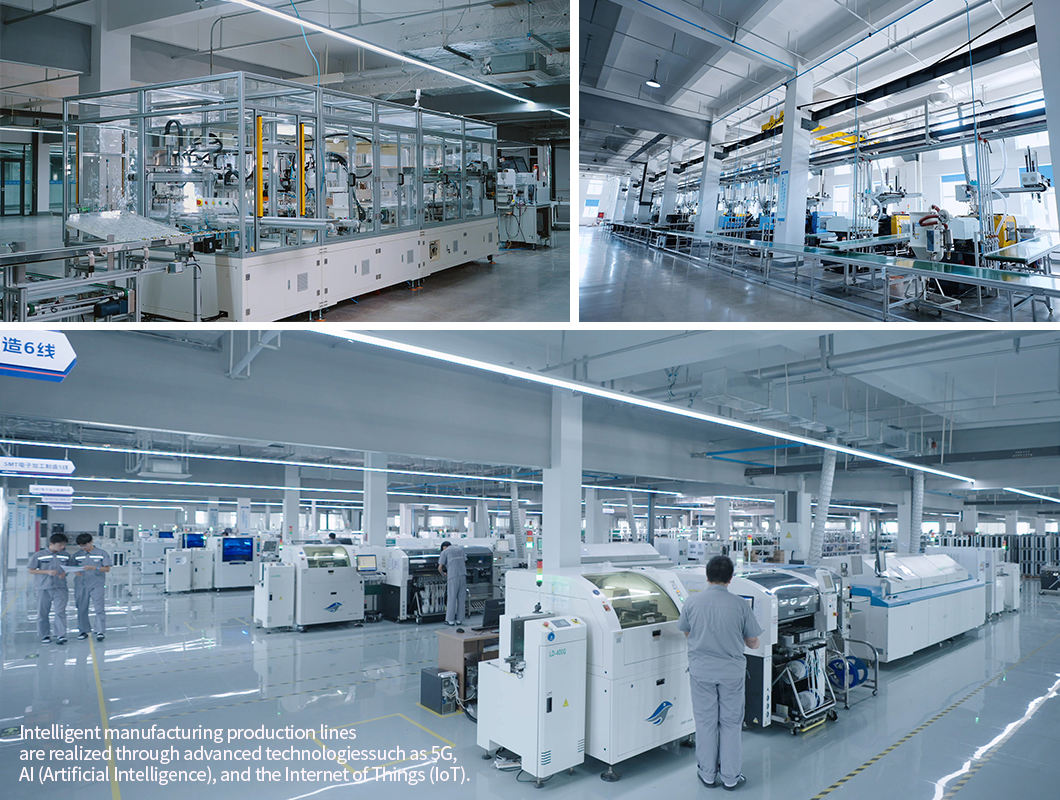

Fully Automated Production Workshop
It is equipped with multiple fully automated SMT production lines and fully automated coating lines, as well as fully automated testing equipment at key nodes of the production lines. This setup not only ensures the consistency and stability of products but also significantly improves production capacity and efficiency.
