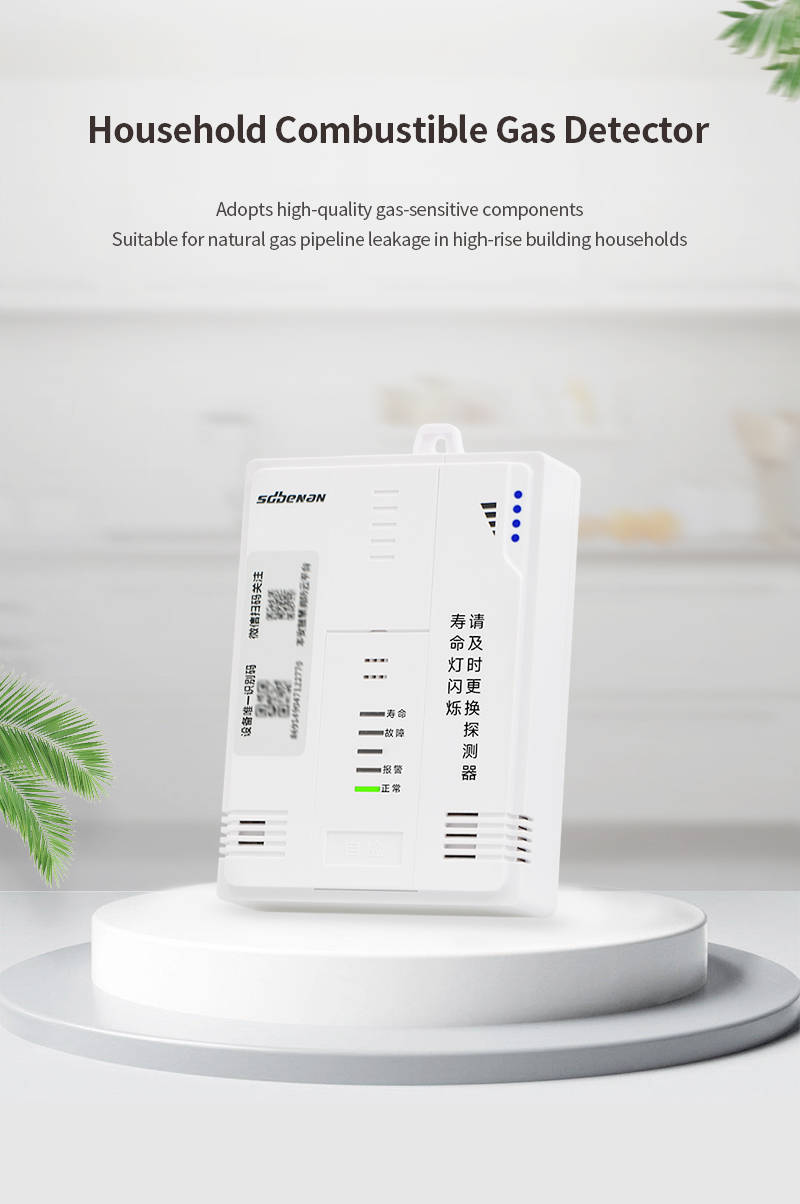

JT-SSJIIIZ06-E Household Combustible Gas Detector

Negotiable
China
No. 169, Helin Street, Gaoxin District, Jinan of China
86 13752227265
+008613752227265
Online Contact
Favorite

Product Introduction

Product Overview:

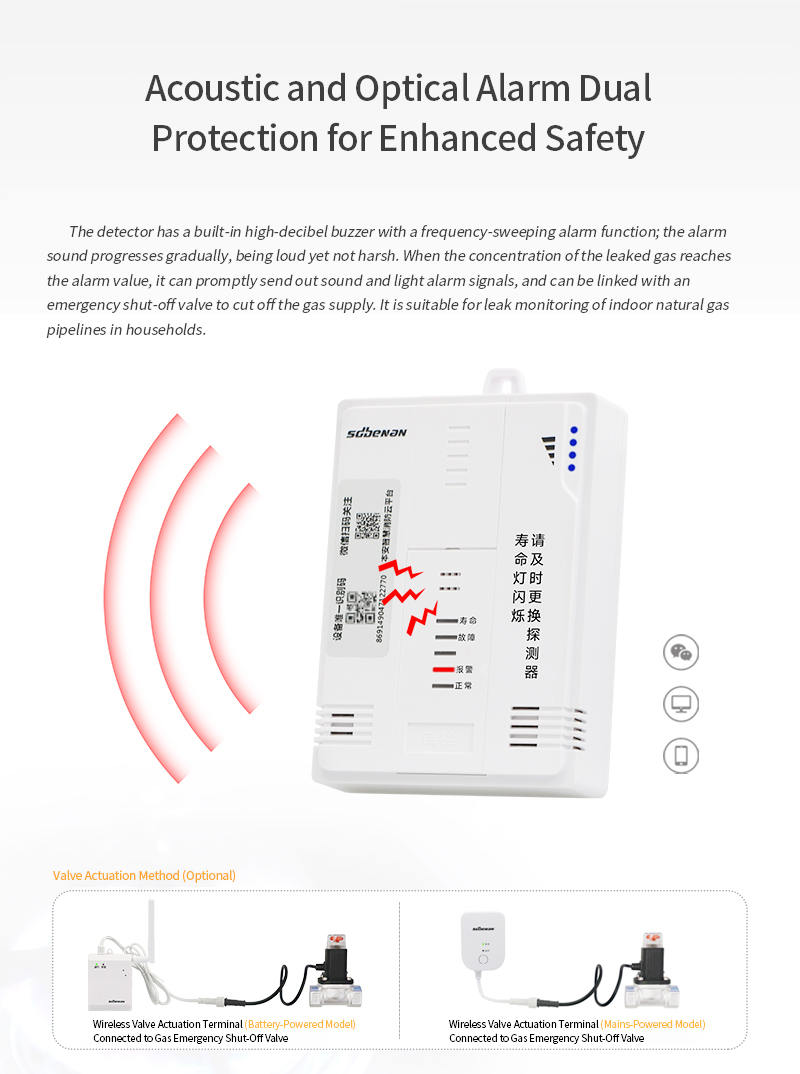

The JT-SSJIIIZ06-E Household Combustible Gas Detector is designed in accordance with national standards GB15322.2-2019 and GB55009-2021. It can detect on-site gas concentration in real time and determine whether the gas concentration exceeds the alarm threshold. When the leaked gas concentration reaches the preset alarm value, it promptly issues audible and visual alarm signals and can activate an emergency shut-off valve to cut off the gas supply. Alarm information is pushed via WeChat, platforms, and apps, making it suitable for leak monitoring of indoor natural gas pipelines in high-rise residential buildings.




Product Features:

※ Utilizes high-quality gas sensing elements with stable performance and high sensitivity; excellent resistance to poisoning and strong anti-interference capability.

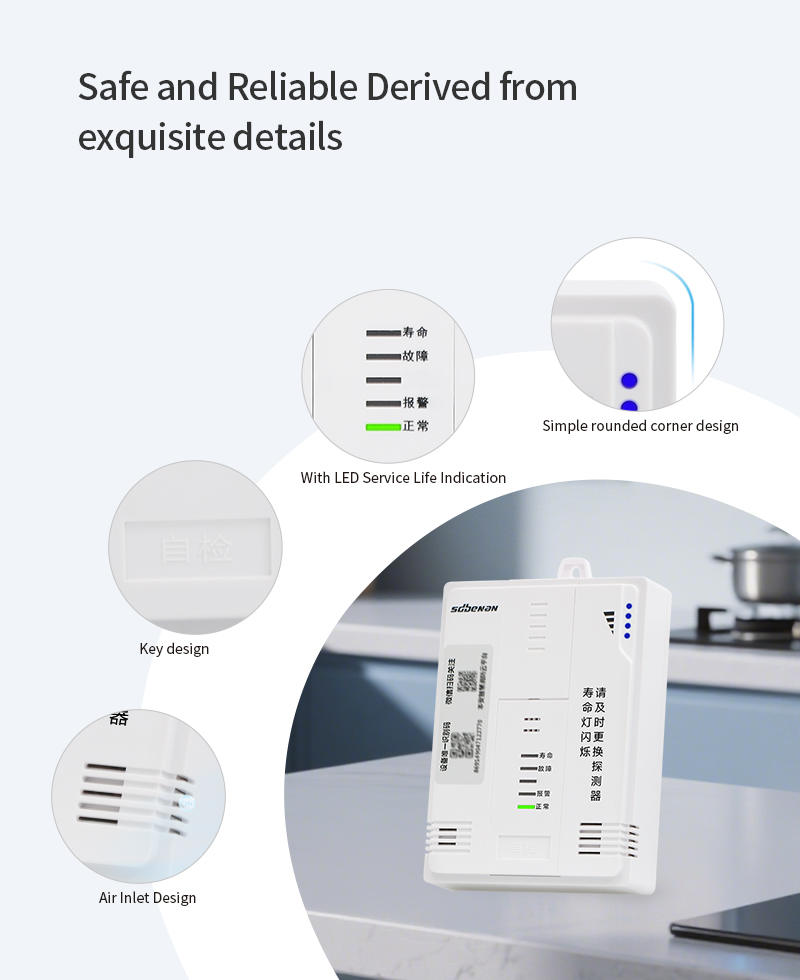

※ Equipped with LED lifespan indication.

※ Features a data communication interface.

※ Equipped with an IoT signal strength indicator light.

※ Concentration and fault alarms are indicated by high-brightness focused LEDs in different colors.

※ High performance, low power consumption, simple operation, and easy maintenance.

※ Unique airflow channels and an independent gas chamber provide better isolation from oil fumes and dust, maintaining smooth airflow and extending service life.

Product Parameters

Rated Voltage AC 220V±15%
Output Interface 12V pulse normally open output (valve actuation) 1 group
Optional Functions Passive switch quantity/Bluetooth function/2.4G wireless valve actuation function
Alarm Set Value 15%LEL
Detected Gas Methane
Range 0~100%LEL
Error ±3%LEL
Alarm Method Audible and visual alarm
Sampling Method Free diffusion type
Communication Method (Optional) NB-IoT/4G-CAT1
Operating Temperature -10°C~55°C
Operating Humidity ≤93%RH (non-condensing)
Dimensions 110mm x 80mm x 31mm

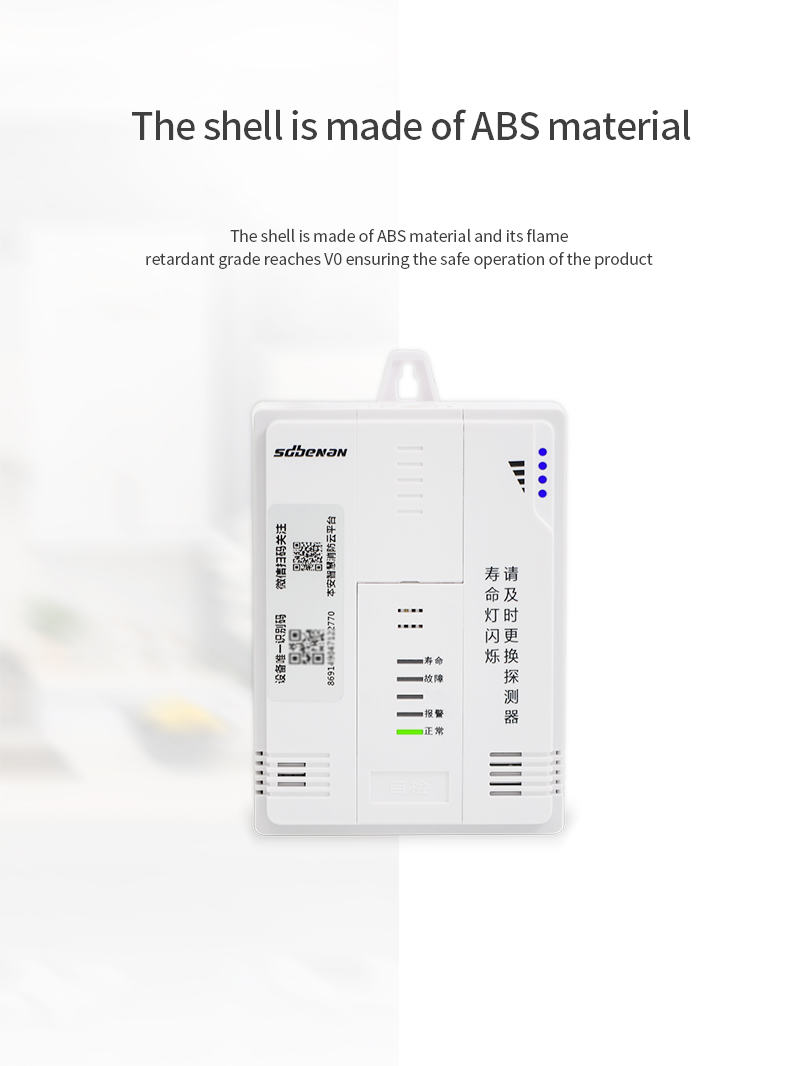

Material ABS
Installation Method Wall-mounted
Execution Standard GB 15322.2-2019/GB55009-2021

Product Details

Our Advantages



Fully Automated Production Workshop
It is equipped with multiple fully automated SMT production lines and fully automated coating lines, as well as fully automated testing equipment at key nodes of the production lines. This setup not only ensures the consistency and stability of products but also significantly improves production capacity and efficiency.

Certifications

Exhibition
