Huoshan Series—240KW Integrated Dual-Gun Single Unit

Negotiable

Shandong Dianshanjia Digital Energy Technology Co., Ltd.

Located Region:

China

Address:

Room 202, Building 2, Huanghe Science and Technology Industrial Park, West of Bohai 24th Road, Dudian Office, Binzhou Economic and Technological Development Zone, Shandong Province

Biz Consulting:

13356295119

E-mail:

HKDSJYX@163.com

Online Contact

Favorite

Comprehensive power coverage: Covers all scenario needs
Compact structure: Integrated design, small footprint, plug-and-play
Easy installation: No dedicated equipment room required, low civil construction costs
High reliability: Industrial-grade components, continuous stable operation 7×24
Wide temperature range operation: Stable output from -30°C to 65°C
Smart management: Supports remote monitoring, fault alerts, and OTA upgrades

Application scenarios: Small and medium-sized logistics parks, captive fleet depots, urban delivery, and dump truck parking lots

240KW Integrated Dual-Gun Single Unit
No.	Name	Item	Unit	Technical Parameter Requirements
1	Integrated DC Charging Pile	Equipment Power	kW	240KW (6*40KW)
2		AC Input Voltage	V	300-437 VAC
3		AC Input Current	A	384
4		AC Power Frequency	Hz	50-60Hz
5		Input Power Factor	/	≥0.99 (above half load)
6		DC Voltage Adjustment Range	V	200-1000V
7		Output Current	A	Single gun max output current 250A; dual gun max output current 500A
8		Voltage Regulation Accuracy	%	No more than ±0.5
9		Current Regulation Accuracy	%	No more than ±1
10		Ripple Coefficient	%	RMS: No more than ±0.5
11		Ripple Coefficient	%	Peak: No more than ±1
12		Current Sharing Imbalance	%	≤5
13		Cable Length	M	4.5
14		Maximum Conversion Efficiency	%	≧97
15		Noise	/	≤65dB
16		Charger Structure Type		Integrated
17		Number of Charging Interfaces	pcs	2
18		Safety Functions	/	Must include multiple safety protection functions such as overvoltage protection, undervoltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, and leakage protection.
19		Protection Rating	/	IP55 outdoor environment
20		Startup Method		Mobile app, RFID card, local startup, VIN startup
21		Module		Enne
22		Cooling Method	/	Air-cooled
23		Housing Material		High-strength zinc-magnesium-aluminum steel plate
24		Dimensions		Width: 860mm * Depth: 790mm * Height: 2076mm

250A Air-Cooled Fast Charging Dual-Gun Air-Cooled Terminal - Shandong Dianshanjia Digital Energy Technology Co., Ltd.

Negotiable

Huoshan Series—240KW Integrated Dual-Gun Single Unit

Product Introduction

Product Parameters

Other products from this supplier

250A Air-Cooled Fast Charging Dual-Gun Air-Cooled Terminal

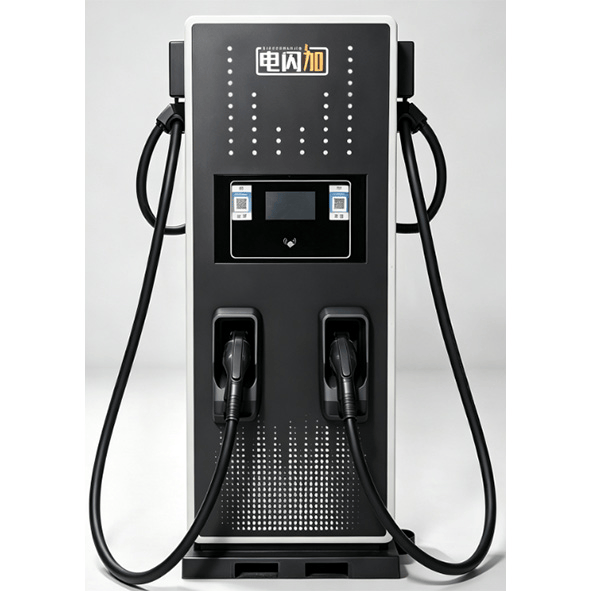

600A Dual-Gun Liquid-Cooled Terminal

400A Dual-Gun Air-Cooled Terminal

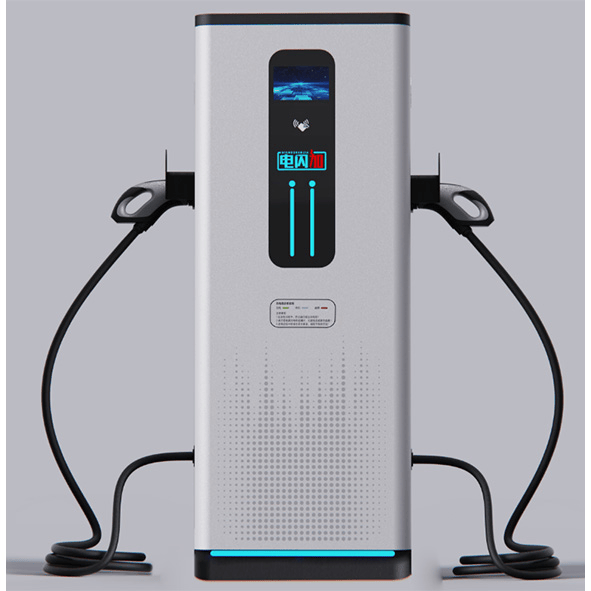

300A Air-Cooled Fast Charging Dual-Gun Air-Cooled Terminal

TianShan Series—2000KW Smart Charging Hub

TianShan Series—2400KW Smart Charging Hub

TianShan Series—2500KW Smart Charging Hub

TianShan Series — 3000KW Smart Charging Hub

TianShan Series—1600KW Smart Charging Hub

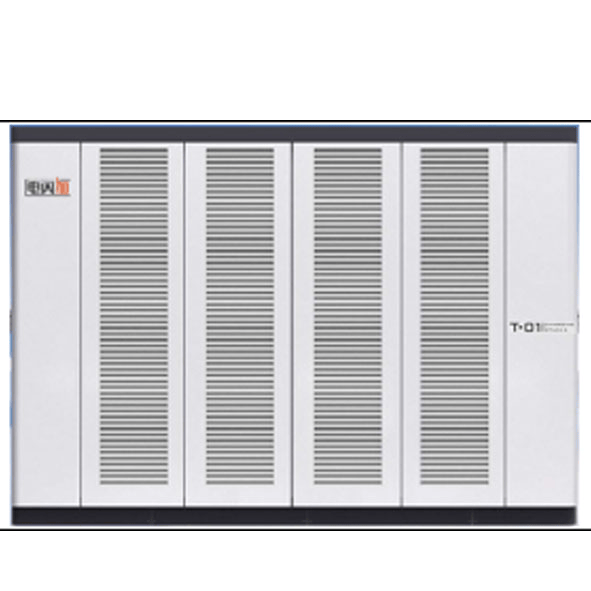

TianShan Series — 1900KW Smart Charging Hub

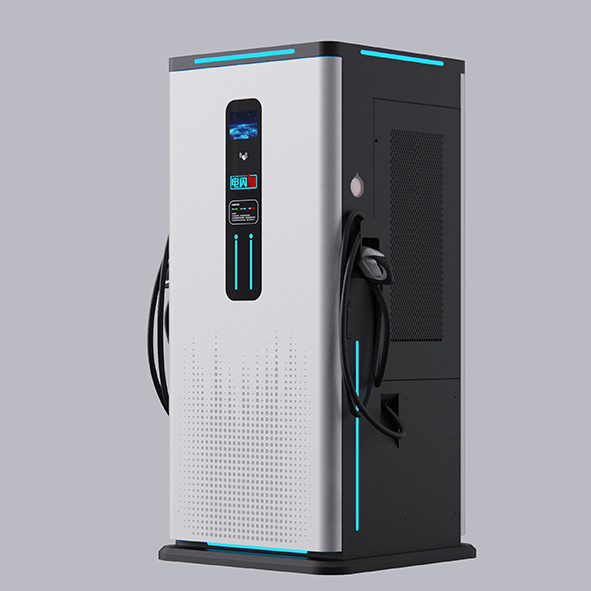

Tianxiao Series—120KW Integrated Dual-Gun Single Unit

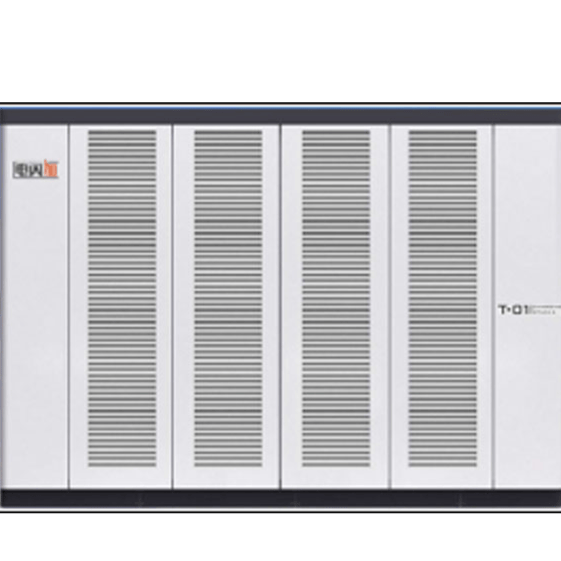

TianShan Series — 1000KW Smart Charging Hub
