Humidity Module Upto 200º C for Environmental Chambers
EXW
$30.00-40.00 /Unit
Dalian Beifang Measurement and Control Engineering Co., Ltd
China
3-1-2,Xuezistreet2,High-Techindustrialzone
13591728246
Online Contact
Favorite
Product Introduction

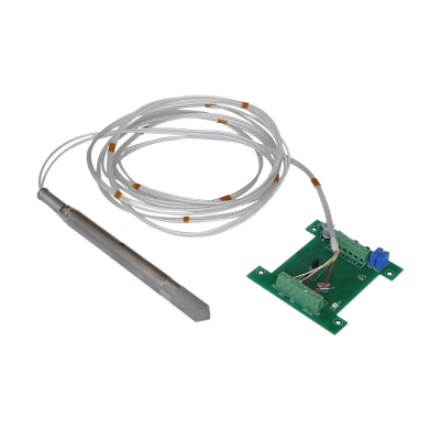

Humidity and Temperature Module upto 200ºC for Environmental Chambers

Practically maintenance-free humidity module DHM100 is an open frame module intended for integration into environmental chambers and other chambers with high temperature tolerance. This module provides a single analog output channel for relative humidity (RH) or dew point (Td) if required. It is resistant to chemical pollution and to high temperature upto 200℃

Practically maintenance-free humidity module DHM200 is an open frame module intended for integration into environmental chambers and other chambers with high temperature tolerance. The modules provide analog 4-20mA and digital RS485 outputs for relative humidity (RH) and temperature(T) . It is resistant to chemical pollution and to high temperature upto 200ºC .

Practically maintenance-free humidity module DHM100 is an open frame module intended for integration into environmental chambers and other chambers with high temperature tolerance. This module provides a single analog output channel for relative humidity (RH) or dew point (Td) if required. It is resistant to chemical pollution and to high temperature upto 200ºC .

Technical Parameters


Specification


Measurement Range Humidity: 0 ~ 100% RH
Temperature: -40~200ºC
Working Temperature Probe: -40~200ºC
Transmitter: -40~70ºC
Accuracy at 20~ 80 %RH & +25 °C(+77 °F) Humidity: ±2%RH
Temperature:±0.3ºC
Response Time (T63) Humidity: ≤15s
Temperature: 30s
Outputs Analog 4-20mA/Digital RS485
Power Supply Input 24 VDC
Probe Material 316L stainless steel
Outputs Digital RS485, Standard Modbus RTU
Maximum connection size 1.5mm²
Stem length 150mm standard.
Option: 52mm/87mm
