The sturdy and reliable DB510-F1T sensor is designed for measuring air relative humidity and temperature in HVAC and climate chambers. Dew point can also be calculated. Its high accuracy, excellent measurement stability and reliable operation make it an ideal choice for applications where accuracy is of the utmost importance.
1/1
Duct Humidity and Temperature Sensor for HVAC and Climate Chamber
EXW
$45.00-55.00 /unit
China
3-1-2,Xuezistreet2,High-Techindustrialzone
13591728246
sales@dabeco.com
Product Introduction
Technical Parameters
Technical Parameters
|
Measurement Range
|
Humidity: 0 ~ 100 %RH; Temperature: - 40 ~ +120 °C (- 40 ~ +248 °F) |
|
Accuracy at 0 ~ 90 %RH & +25 °C(+77 °F)
|
Humidity: ± 2.0 %RH; Temperature: ± 0.2 °C (31.64 ~ 32.36 °F) |
|
Outputs
|
Analog 4 - 20 mA / Digital RS485, Standard Modbus RTU
|
|
Response Time
|
Humidity: ≤8s, Temperature: ＞2s
|
|
Power Supply Input
|
9 -36 VDC
|
|
Power Consumption
|
Lowest 1.2kw
|
|
Display
|
dual line LCD / Without Optional
|
|

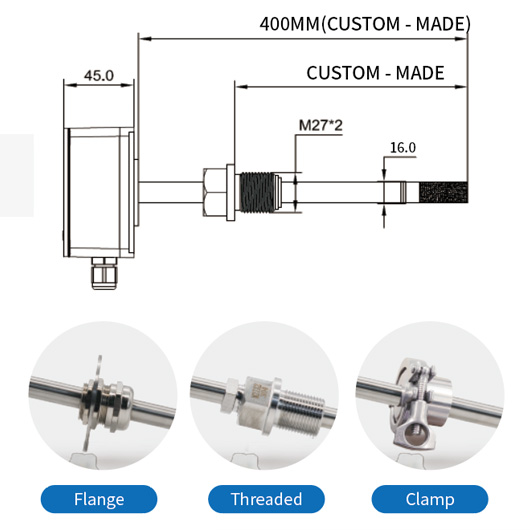

Stem Length
|
400 mm standard, customizable
|
