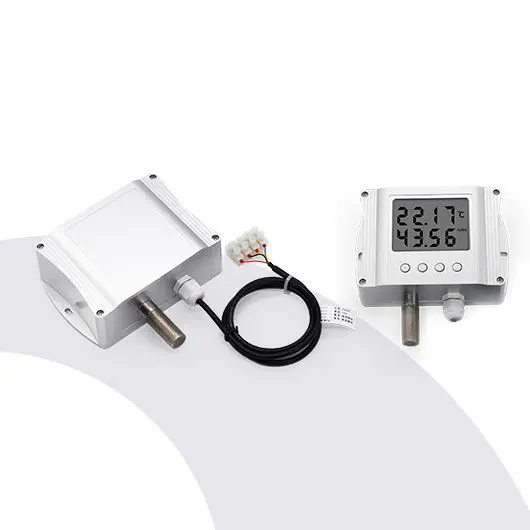

Humidity and TemperatureTransmitter Wall Mounted for Indoor Usage
EXW
$45.00-55.00 /unit
Dalian Beifang Measurement and Control Engineering Co., Ltd
China
3-1-2,Xuezistreet2,High-Techindustrialzone
13591728246
Online Contact
Favorite
Product Introduction

The sturdy and reliable wall mounted DB510-GS sensor is designed for measuring air relative humidity and temperature in exacting interiors in data centers, other industrial buildings, hospitals and cleanrooms or monitoring and control of indoor environmental quality in any space where health security matters. State-of-the-art capacitive polymer sensor ensures excellent calibration long term stability, inertia against water and condensation.



Technical Parameters

Technical Parameters



Measurement Range

Humidity: 0 ~ 100 %RH;

Temperature: - 40 ~ +120 °C (- 40 ~ +248 °F)
Accuracy at 0 ~ 90 %RH & +25 °C(+77 °F)

Humidity: ± 2.0 %RH;

Temperature: ± 0.2 °C (31.64 ~ 32.36 °F)
Outputs
Analog 4 - 20 mA / Digital RS485, Standard Modbus RTU
Response Time
Humidity: ≤8s, Temperature: ＞2s
Power Supply Input
9 -36 VDC
Power Consumption
Lowest 1.2kw
Display
dual line LCD / Without Optional
