Product Introduction

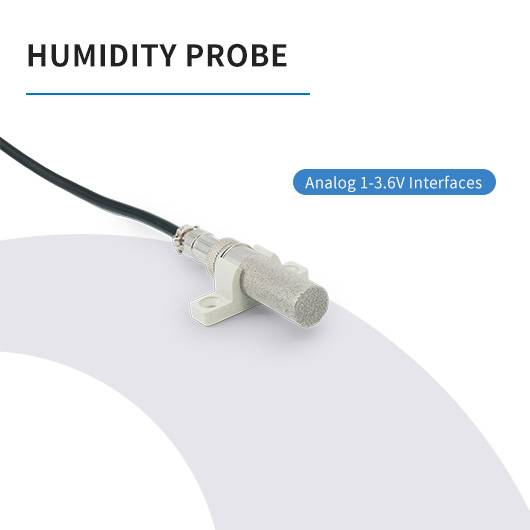

1-3.6V Output Humidity Probe for Climate Chamber

The relative humidity probe DB115-436 with is an economical humidity module in an industrial plastic housing. The probe with analog 1-3.6V signal output is designed for OEM applications where reliable and accurate measurements are required. The module's linear voltage output enables direct connection to a micro-controller. It can be applied in various Industrial fields and process control etc.



1-3.6V Relative Humidity Module upto 120℃ for Climate Chamber
The robust and precise DB130-436 sintering humidity module is with analog 1-3.6V signal output. It is a humidity probe designed for Original Equipment Manufacturer (OEM) applications where reliable and accurate measurements are required.The module's linear voltage output enables direct connection to a micro-controller.
With features of full interchangeability, high reliability and log-term stability and temperature resistance(upto 120℃), it can be applied in various Industrial fields and process control etc.





Technical Parameters
Measurement Range Humidity: 0 ~ 100 %RH;
Temperature: - 40 ~ +120 °C (- 40 ~ +248 °F)
Accuracy at 0 ~ 90 %RH & +25 °C(+77 °F) Humidity: ±2.0 %RH;
Temperature: ±0.2 °C (31.64 ~ 32.36 °F)
Response Time (T63) ≤8 S
Output

Analog voltage 1-3.6V

Power Supply Input 2.4 - 5.5 VDC
Working Temperature -40 ~ 60 °C (- 40 ~ +140 °F)
Working current ≤15mA
