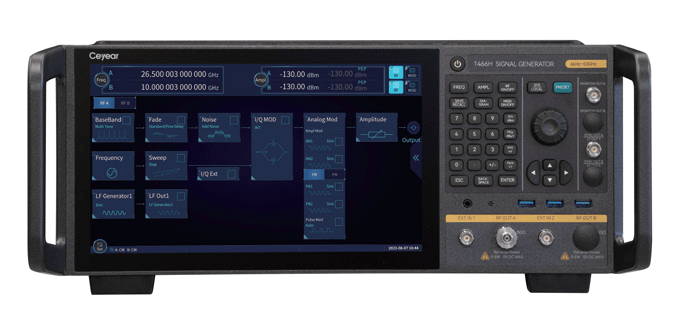

1466C/D/E/G/H/L/N/P Signal Generator

Negotiable
Ceyear Technologies Co., Ltd.
China
No.98 Xiangjiang Road, Huangdao District, Qingdao City, Shandong Province
+8615253257006
+8615253257006
Online Contact
Favorite

Product Parameters

Frequency Range 6kHz~13GHz(1466C)
6kHz~45GHz(1466G)
6kHz~90GHz(1466N)		 6kHz~20GHz(1466D)
6kHz~53GHz(1466H)
6kHz~110GHz(1466P)		 6kHz~33GHz(1466E)
6kHz~67GHz(1466L)
Frequency Resolution 0.001Hz
SSB Phase Noise (Typ.) -145dBc/Hz@10kHz offset at 1GHz Carrier
-132dBc/Hz@10kHz offset at 10GHz Carrier
-161dBc/Hz@30MHz offset at 20GHz Carrier
Maximum Output Power (Typ.) +27dBm@5GHz
+22dBm@60GHz		 +24dBm@20GHz
+3dBm@110GHz		 +25dBm@30GHz
Modulation Type AM, FM, Phase Modulation, and Pulse Modulation
Channel Numbers Maximum support 2 Channels
