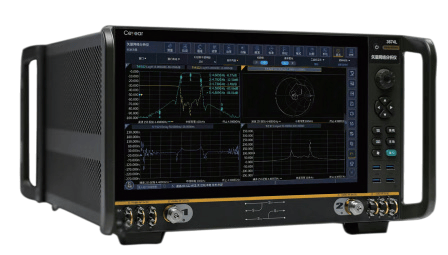

3674B/C/D/E/F/G/H/K/L/N/P Vector Network Analyzer

Negotiable
Ceyear Technologies Co., Ltd.
China
No.98 Xiangjiang Road, Huangdao District, Qingdao City, Shandong Province
+8615253257006
+8615253257006
Online Contact
Favorite
Product Parameters
Frequency Range 10MHz~9GHz(3674B)  10MHz~14GHz(3674C)  10MHz~20GHz(3674D)  10MHz~26.5GHz(3674E)  10MHz~32GHz(3674F)  10MHz~44GHz(3674G)  10MHz~50GHz(3674H)  10MHz~53GHz(3674K)  10MHz~67GHz(3674L)  10MHz~90GHz(3674N)  10MHz~110GHz(3674P)
Minimum frequency up to 500Hz
Frequency Resolution 0.1Hz
Dynamic Range (Typ.) 102dB(10 ~ 50MHz)  124dB(50 ~ 500MHz)  137dB(0.5 ~ 1GHz)  141dB(1 ~ 2GHz)  142dB(2 ~ 4GHz)  142dB(4 ~ 10GHz)  139dB(10 ~ 16GHz)  138dB(16 ~ 26.5GHz)  137dB(26.5 ~ 30GHz)  134dB(30 ~ 32GHz)  135dB(32 ~ 40GHz)  128dB(40 ~ 50GHz)  118dB(50 ~ 60GHz)  116dB(60 ~ 64GHz)  114dB(64 ~ 67GHz)
IF Bandwidth 1Hz to 30MHz
Interface Type LAN, GPIB, USB
Various Functions Time-domain, True-Differential, Mixer/Converter Test, Gain Compression, Spectrum Analysis, Noise Figure Analysis and Pulse Measurement
