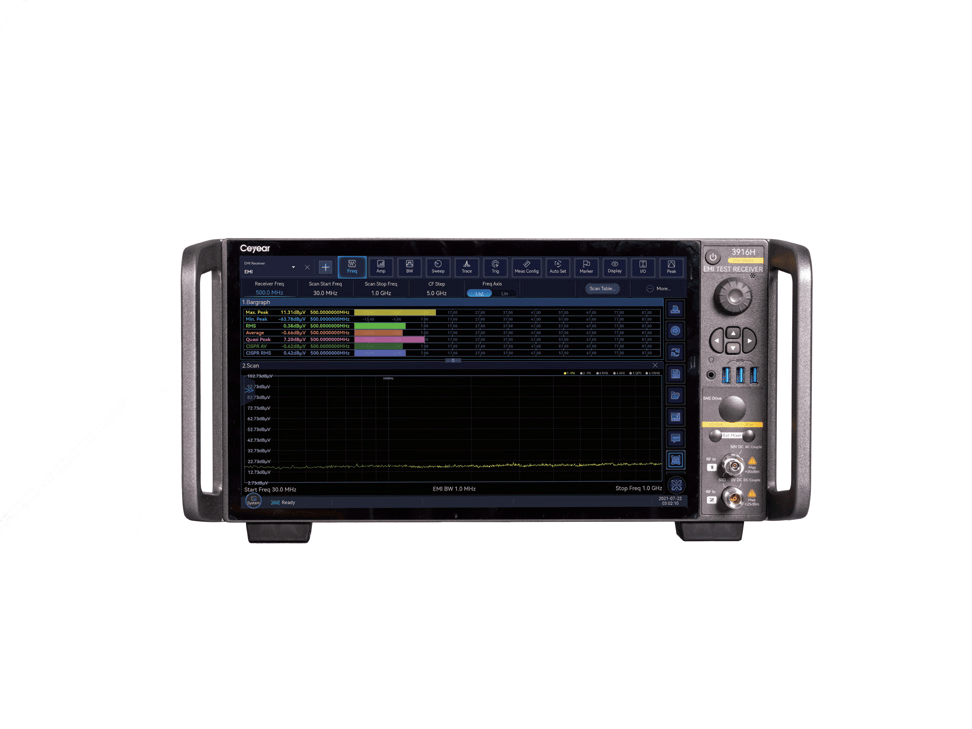

3916 EMI Receiver

Frequency Range

2Hz~8.4GHz(3916B)
2Hz~45GHz(3916F)

2Hz~18GHz(3916D)
2Hz~50GHz(3916H)

2Hz~26.5GHz(3916E)

EMI Filter (-6dB bandwidth)

Supports 1Hz, 10Hz, 100Hz, 200Hz, 1kHz, 9kHz, 10kHz, 100kHz, 120kHz, 1MHz, 10MHz

Resolution Bandwidth

1 Hz to 20 MHz(in steps of 1, 2, 3, and 5)

SSB Phase Noise (1GHz Carrier) (Typ.)

-125dBc/Hz@1kHz offset at 1GHz Carrier
-133dBc/Hz@10kHz offset at 1GHz Carrier
-135dBc/Hz@100kHz offset at 1GHz Carrier

DANL (Typ.)

-153dBm/Hz@1GHz Carrier - 160dBm/Hz@1GHz Carrier(Pre-amplifier ON)

Fast FFT Time-domain Test

FFT, Parallel Filtering and Detection up to 32768 points, Overlap rate of over 93.75% for FFT processing, with amplitude error of less than 0.4dB

EMC Standard Compliance Test

Typical EMI test CISPR-compliant FFT time-domain test and detector, EMC standards such as GB/T 6113, GJB151 and CISPR
