| Frequency Range | 2Hz~4GHz(4052A) 2Hz~26.5GHz(4052E) |
2Hz~8GHz(4052B) 2Hz~40GHz(4052F) |
2Hz~13.6GHz(4052C) 2Hz~45GHz(4052G) |
2Hz~18GHz(4052D) 2Hz~50GHz(4052H) |
| Resolution Bandwidth | Maximum 1.2GHz Analysis Bandwidth | |||
| SSB Phase Noise (1GHz carrier) (Typ.) | -122dBc/Hz@10 KHz offset at 1GHz Carrier -122dBc/Hz@100 KHz offset at 1GHz Carrier -135dBc/Hz@1 MHz offset at 1GHz Carrier |
|||
| DANL (Typ.) | -154dBm/Hz@1GHz Carrier -165dBm/Hz@1GHz Carrier(Pre-amplifier ON) | |||
| Real-time Signal Analysis | Supports maximum 400 MHz real-time signal analysis, 100% POI <0.6 us | |||
| Abundant Function Options | Comprehensive wireless communication protocol analysis, 5G NR, LTE, OFDM, NB-IOT, WCDMA, GSM Signal Analysis, Phase Noise Measurement, Real-Time Spectrum Analysis Measurement, FMCW and WLAN Signal Measurement | |||
1/1

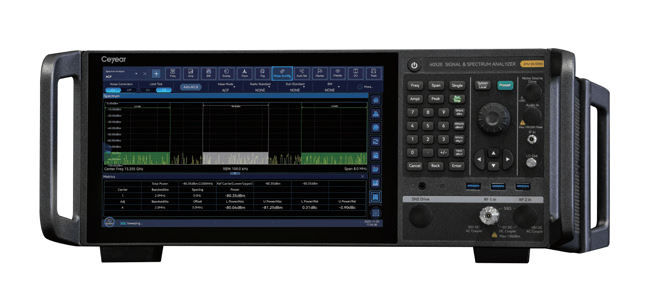

4052A/B/C/D/E/F/G/H Signal/Spectrum Analyzer
Negotiable
China
No.98 Xiangjiang Road, Huangdao District, Qingdao City, Shandong Province
+8615253257006
+8615253257006
lvzunyang@ceyear.com
Product Parameters
