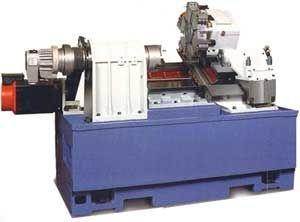

cnc turning center

chuck size 15" (18") 15" (18") swing over bed mm 800 inch 31.46 maximum turning diameter mm 590 inch 23.22 maximum turning length mm 1100 inch 43.30 spindle speed rpm 2000 rpm 2000 maximum bar size mm 117 inch 4.60 spindl......chuck size 15" (18") 15" (18") swing over bed mm 800 inch 31.46 maximum turning diameter mm 590 inch 23.22 maximum turning length mm 1100 inch 43.30 spindle speed rpm 2000 rpm 2000 maximum bar size mm 117 inch 4.60 spindle motor kw 30 hp 40 rapid feedrate (x/z) m/min 20 / 24 ipm 787 / 944 (x + z) axis travel mm 345 + 1150 inch 13.58 + 45.27 floor space(lw) mm 4300 x 2300 inch 90.9 x 169.3 machine weight kg 9,500 lbs 20,944 electric power kva 75 amp 197 turn mill resolution deg. 0.001 deg. 0.001 rpm rpm 4,000 rpm 4,000 turret station 12 12
