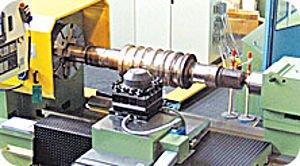

cnc horizontal turning center

the ht lathes are the right answer in case of machining on limited dimensions. all the main parts of the machine are in cast iron, which assures the rigidity as well as the long life of the machine. the bed is of single t......the ht lathes are the right answer in case of machining on limited dimensions. all the main parts of the machine are in cast iron, which assures the rigidity as well as the long life of the machine. the bed is of single type with three ways, the rear way is of prismatic type while the central and front ways are of flat type. the central way is of double type in order to allow a free movement of the carriage aside of the tailstock and of the steady rests. the ht lathe can support up to 18 tons between centres and they can machine work piece with up to 1.600 mm diameter and any length longer than 3 metres. the ht lathes are equipped with different turning units, according to the specific needs, such as a square 4 positions turret, a 12 position disc turret with live tools. they are also designed to have a vertical y axis. the ht lathes can be equipped with working units to perform multiple drilling operations, grinding, drilling/milling and boring operations. the lathes can be equipped with steady rests, available in different models and clamping ranges.
