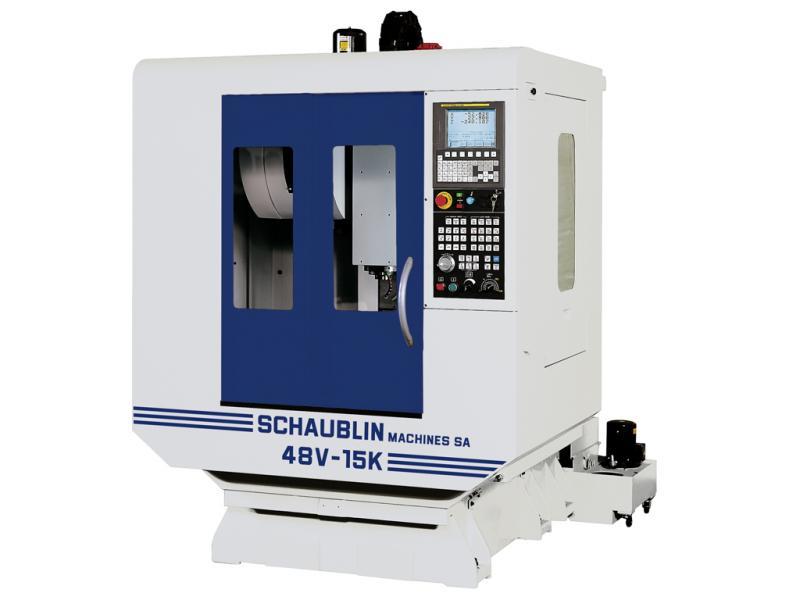

48V 15K Compact vertical machining centers

Heavy cast construction for maximum rigidity. The stationary column and the "C" frame ensure optimum shock absorption. Thermal stability is increased by fixed and pre-tensioned ball screws on all axes. Stiff and thermally......Heavy cast construction for maximum rigidity. The stationary column and the "C" frame ensure optimum shock absorption. Thermal stability is increased by fixed and pre-tensioned ball screws on all axes. Stiff and thermally-stable spindle with lifetime-lubricated spindle bearings. Fanuc NC control unit 0i MC. Spindel with 15,000 rpm and ISO 30 spindle cone. Longitudinal travel (X axis) = 480 mm, transverse travel (Y axis) = 400 mm, vertical travel (Z axis) = 430 mm. Machine weight 2.8 metric tons. The basic version of this machine is equipped with 3 axes but an additional 4th axis can be mounted.
