Cable reel serial LR

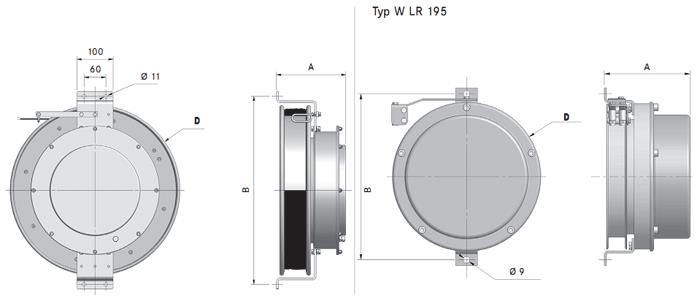

serial LR for length and inclination measurement with max. 7 cables or singel steel wire rope for cable length up to 40 m fixation by mounting flange WER reel type right Contacts pc. Conductor section mm2 Cable mm Cable l......serial LR for length and inclination measurement with max. 7 cables or singel steel wire rope for cable length up to 40 m fixation by mounting flange WER reel type right Contacts pc. Conductor section mm2 Cable mm Cable lenght m A mm B mm C mm Weight kg W LR 195.02 Steel wire - 1,5 2 119 227 204 4 W LR 195.05 1,5 5 W LR 195.11 1,5 11 W LR 195.20 4,0 20 195 400 320 11 W LR 195.30 4,0 30 520 478 17 W LR 195.40 4,0 40 620 570 22 W LR 195.032505 3 Screened 0,25 3,8 5 119 227 204 4 W LR 320.032510 10 195 400 320 11 W LR 320.032520 20 W LR 470.032530 30 520 478 17 W LR 520.032540 40 241 570 520 68 W LR 520.032550 50 W LR 320.073410 7 Screened 0,34 6,3 10 225 400 320 12 W LR 470.073420 20 520 478 18 W LR 520.073430 30 570 520 20 W LR 570.073440 40 620 570 23 Length transductor (potentiometer) add – ”1P“ – for one potentiometer or – ”2P“ – for two potentiometers. Angle transductor (inclinometer) add – ”1I“ – for one inclinometer or – ”2I“ – for two inclinometers. Order example W LR [Cable reel serial W LR] · 320. [Flange D mm] · 03. [Contacts] · 0,25. [Cross section mm2] · 10. [Cable length m ] · 1 P. [1 potentiometer ] · 1 I [1 inclinometer]
