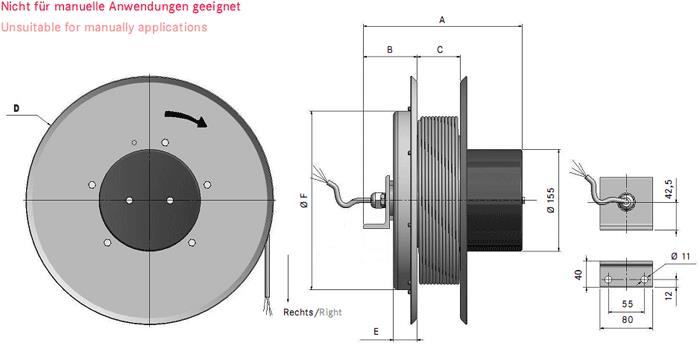

Cable reel serial WE 10

serial WE 10 for conductor section of 1,0 mm2 with max. 36 electric contacts available in Left or Right version fixation by mounting flange self winding by permanent spring force Technical information cable reel Protectio......serial WE 10 for conductor section of 1,0 mm2 with max. 36 electric contacts available in Left or Right version fixation by mounting flange self winding by permanent spring force Technical information cable reel Protection category IP 65 Max. working temperature -20°C/+60°C Max. voltage 75V Max. current 5A type right WEL reel type left Contacts pc. Conductor section mm2 Cable mm Cable lenght m A mm B mm C mm D mm E mm F mm WER 230.021005 2 1 6,0 5 161 82 235 30 228 WER 230.021010 10 161 82 235 30 228 WER 370.021015 15 161 82 370 37 322 WER 420.021027 27 161 92 422 37 322 WER 470.021032 32 161 92 478 47 322 WER 520.021036 36 161 92 520 47 322 WER 230.031008 3 1 7,3 8 150 82 235 30 228 WER 270.031010 10 210 82 275 37 272 WER 370.031015 15 210 82 370 37 322 WER 420.031025 25 220 92 422 37 322 WER 600.031040 40 220 92 620 47 422 WER 370.041012 4 1 12 174 82 370 37 322 WER 230.061005 6 1 10,0 5 230 82 235 30 228 WER 370.061015 15 250 82 370 37 322 WER 470.061020 20 260 92 478 47 322 WER 520.061025 25 260 92 520 47 322 WER 600.061030 30 260 92 620 47 422 WER 700.061035 35 260 92 720 47 532 WER 340.071010 7 1 10,5 10 250 82 340 37 272 WER 370.071018 18 250 82 370 37 322 WER 520.071025 25 260 92 520 47 322 WER 340.081010 8 1 11 10 250 82 340 37 272 WER 370.081018 18 260 82 370 37 322 WER 520.081025 25 260 92 520 47 322 WER 370.121010 12 1 13 10 285 82 370 37 322 WER 470.121015 15 285 92 478 47 322 WER 500.121020 20
