Single port hose reel serial 800

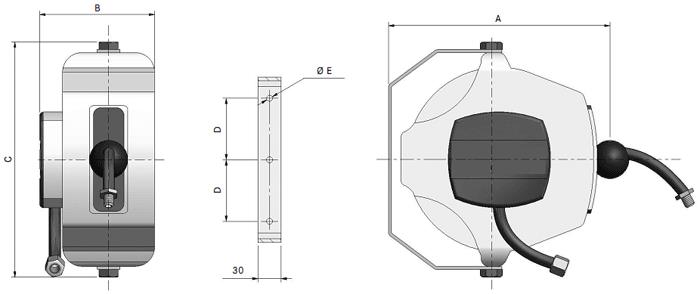

serial 800 for single hose applicable for compressed air and water for hose length up to 20 m with locking system for safe use fixation by swivel bracket Reel type A mm B mm C mm D mm E mm Hose dimension Total length m Ma......serial 800 for single hose applicable for compressed air and water for hose length up to 20 m with locking system for safe use fixation by swivel bracket Reel type A mm B mm C mm D mm E mm Hose dimension Total length m Max. working pressure bar W 800 225 130 180 100 6,5 6x8 5 10 W 801 310 160 260 70 8,5 6x10 10 10 W 802 450 195 361 70 8,5 8x12 15 15 W 803 530 210 425 70 10,5 10x15 20 15 W 804 530 210 425 70 10,5 12x18 15 15 Order example W 800 [Single port hose reel serial 800
