Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007,10063,10229,10533,10700,10703,11235,11392,1015,10075,10269,10559,10701,10900,11236
11531,1283,10113,10446,10578,10702,11234,11391
Multiple-conductor, thermoplastic insulation.
2463,20850,21118, 21145, 21272, 21283, 21307, 21903, 2464, 20854, 21119, 21254
21279, 21284, 21658, 21920, 20155, 21099, 21120, 21265, 21280, 21285, 21659
21921, 20811, 21115, 21143, 21266, 21282, 21286, 21902
Single-conductor, thermoset insulation.
3607, 3811, 3812
Multiple-conductor, thermoset insulation.
4544

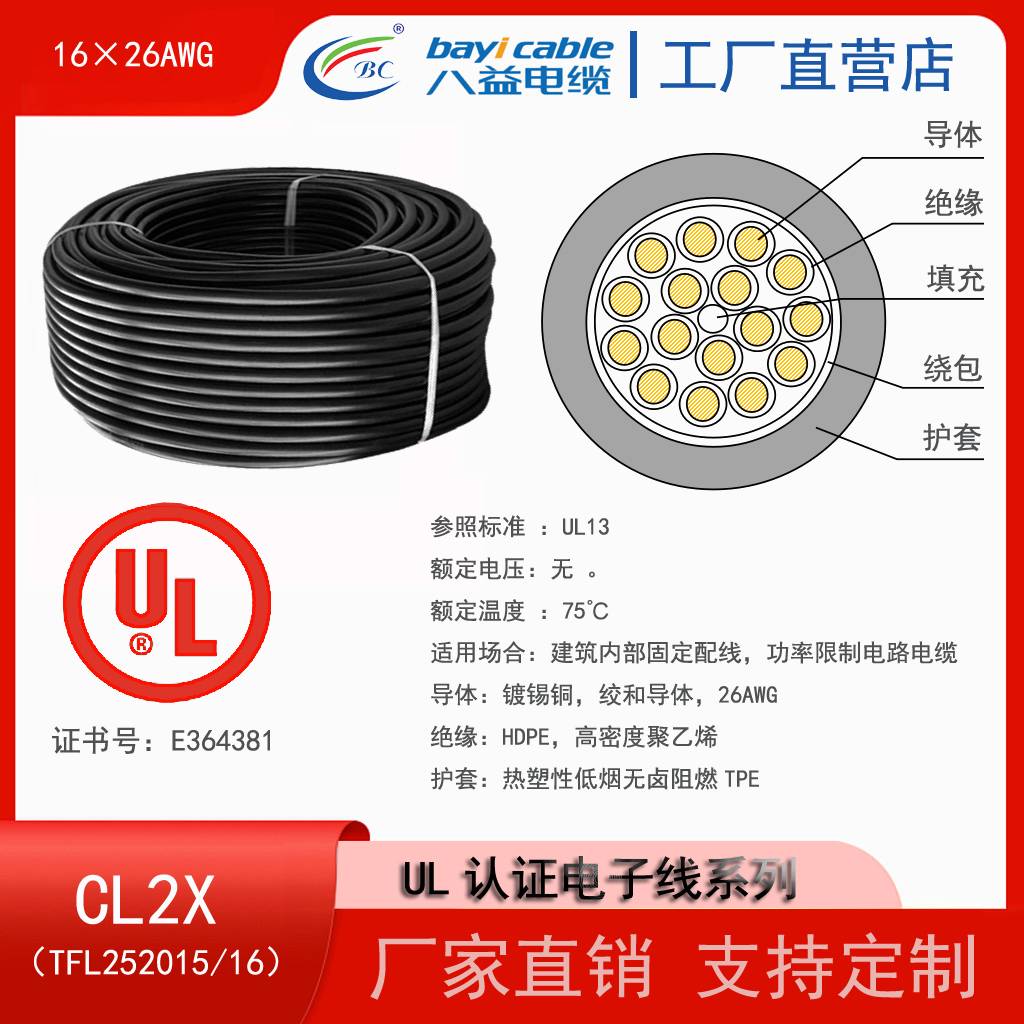

CL2X cable (UL Certificate No. E364381);
Reference standard:UL13
Rated voltage: Unspecified。
Rated temperature:75℃
Applicable occasion: Applied to fixed wiring inside the buildings, circuit cable with limited power.
Conductor: Tinned copper, standard conductor, 26AWG.
Insulation: HDPE, high-density PE.
Sheath: Low-smoke, halogen-free and flame-retardant thermoplastic TPE.
Telecommunication power cable for the central office (UL Certificate No. E333160);
Reference standard:UL2731
Rated voltage:300V、600V、1000V
Rated temperature:75℃、90℃
Applicable occasion: Telecommunication power cable for the central office.
Conductor: Tinned copper or copper.
Insulation: Halogen-free and flame-retardant thermoplastic elastomer.
Sheath: Halogen-free and flame-retardant thermoplastic elastomer.
Characteristics: Resistance of ultraviolet rays.
Telecommunication power cable for the central office (UL Certificate No. E 333160)
Reference standard:UL2731
Rated voltage:300V、600V、1000V
Rated temperature:75℃、90℃。
Applicable occasion: Telecommunication power cable for the central office.
Conductor: Tinned copper or copper.
Insulation: Low-smoke, halogen-free and flame-retardant thermoplastic Polyolefin.
Concentric conductor or screen: Tinned copper, copper, tinned copper clad aluminum, copper clad
Thermoplastic PO insulated, single conductor cable for electrical wiring (UL Certificate No. E241571)
Thermoplastic PO insulated and sheathed, single core cable for electrical equipments UL Certificate No. E241571)
Thermoplastic PO insulated, single core cable for electrical equipments (UL Certificate No. E241571)
Thermoplastic PO insulated and sheathed, multi-core cable for electrical equipments (UL Certificate No. E241571)
Thermoplastic PO insulated and sheathed, 2-core flat conductor cable for electrical equipments(UL:E241571)
