This type of current transformer is epoxy resin cast completely enclosed pillar structure, suitable for indoor 50Hz, rated voltage of 10kV and below power lines and equipment for current and electric energy measurement and relay protection.
1/1

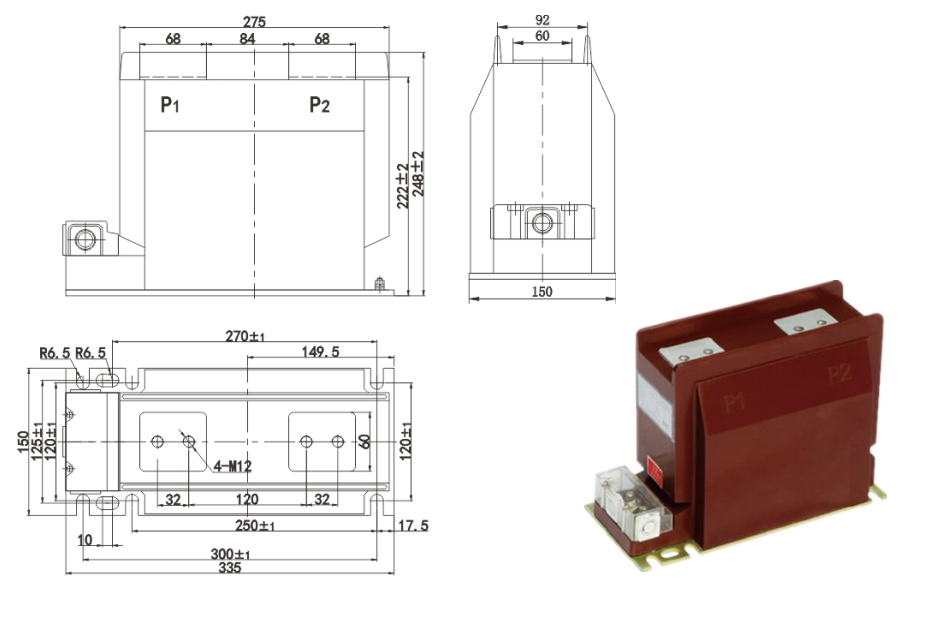

LZZBJ9-10/150b/2 type current transformer
Negotiable
China
3032, Building 6, No. 97 Changping Road, Shahe Town, Changping District, Beijing (Changping Demonstration Park)
010-57785002
Product Introduction

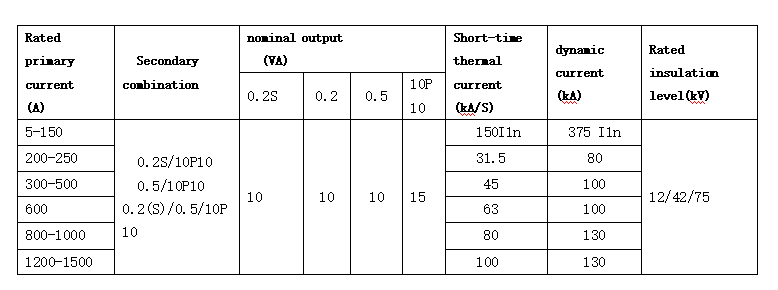

Technical parameters
Technical parameters
Standard :GB/T20840.1 and GB/T20840.2
Rated frequency :50Hz
Rated secondary current :5A or 1A
Ambient temperature :-5℃~+40℃
