JDZX9-6, 10 type voltage transformer 1, Overview This type of voltage transformer is epoxy resin cast fully enclosed products, suitable for indoor 50Hz, rated voltage 10kV and below the power system, connected between the phase and the ground for voltage, electric energy measurement and relay protection use.
1/1

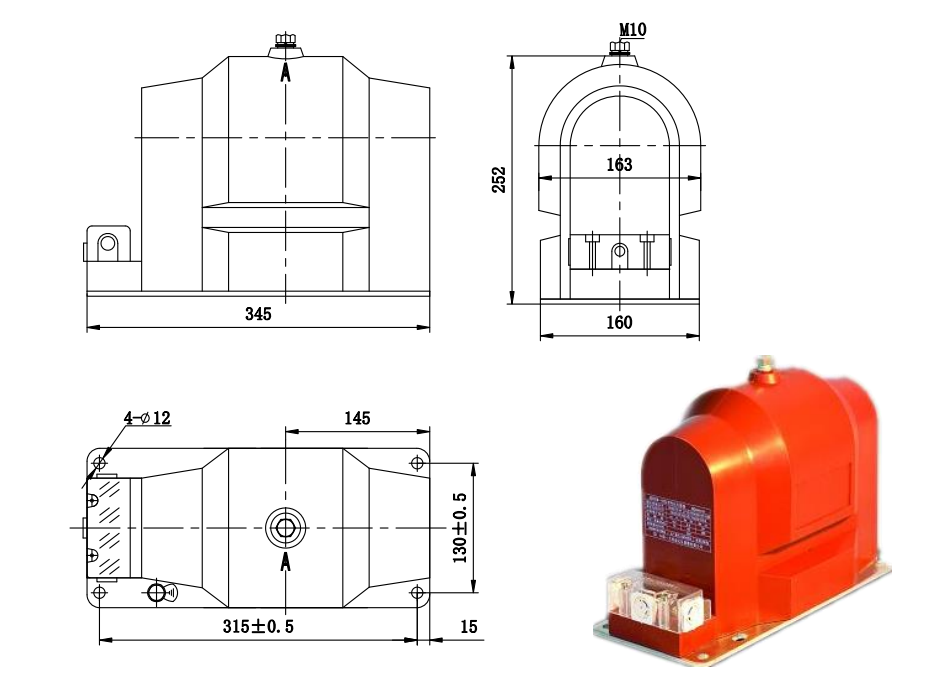

JDZX9-6, 10 type voltage transformer
Negotiable
China
3032, Building 6, No. 97 Changping Road, Shahe Town, Changping District, Beijing (Changping Demonstration Park)
010-57785002
Product Introduction

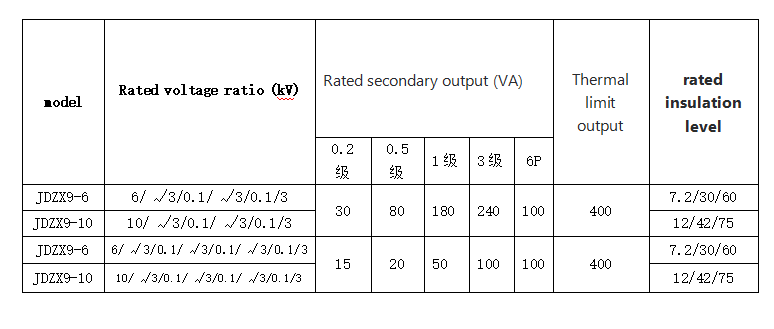

technical parameters
The product meets the standard :GB/T20840.1 and GB/T20840.3
Ambient temperature :-5℃~+40℃
Rated frequency :50Hz
Pollution grade :Ⅱ
