PRS-7000 Integrated Monitoring System
PRS-7000 integrated monitoring system is an integration of the advanced distributed-type network technology,object-oriented database technology and cross-platform visualization technology,which is fully complied with multiple international standards (IEC60870-5-103,IEC-61850 ED1/ED2 etc.).PRS-7000 is fully adhere to the basic requirements for station information digitalization,communication platform networking and information sharing standardization.
| ltem | Parameter |
|---|---|
| Platform | Crossing the Unix/Linux/Windows operating system platform |
| Database | On-line adding,deleting and modifying various data |
| Module | Includes data configuration(modeling)tool,database system supporting dynamic model,communication unit configuration tool,graphic configuration, communication protocol processing module,data bus module,system function redun- dant control module,statistical calculation,SCADA module,etc. |

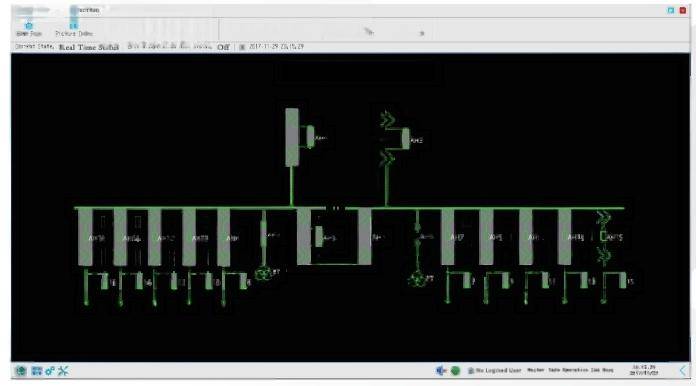

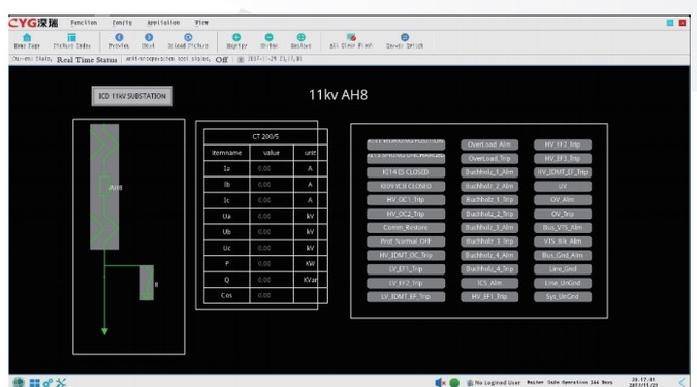

| Graphic | The graphic system supports some standard graphic formats (SVG,CIM/G, etc.),with good interaction |
| Analog | Support the protocol IEC60870-5-103,IEC61850 and GOOSE,constantly measures and calculates voltage,current,power and frequency. |
| Anti-maloperation | Selects measuring points from automation data and edits anti-maloperation attributes,including close/open rule,operational terms,etc. |
