PRS-7367 provides a cost-effective protection &control solution for distribution system.The relay offers extensive protection,control,monitoring and measuring functions in one enclosed unit.The relay is suitable for the application in solidly grounded,impedance grounded, peterson coil grounded or ungrounded networks.
1/2

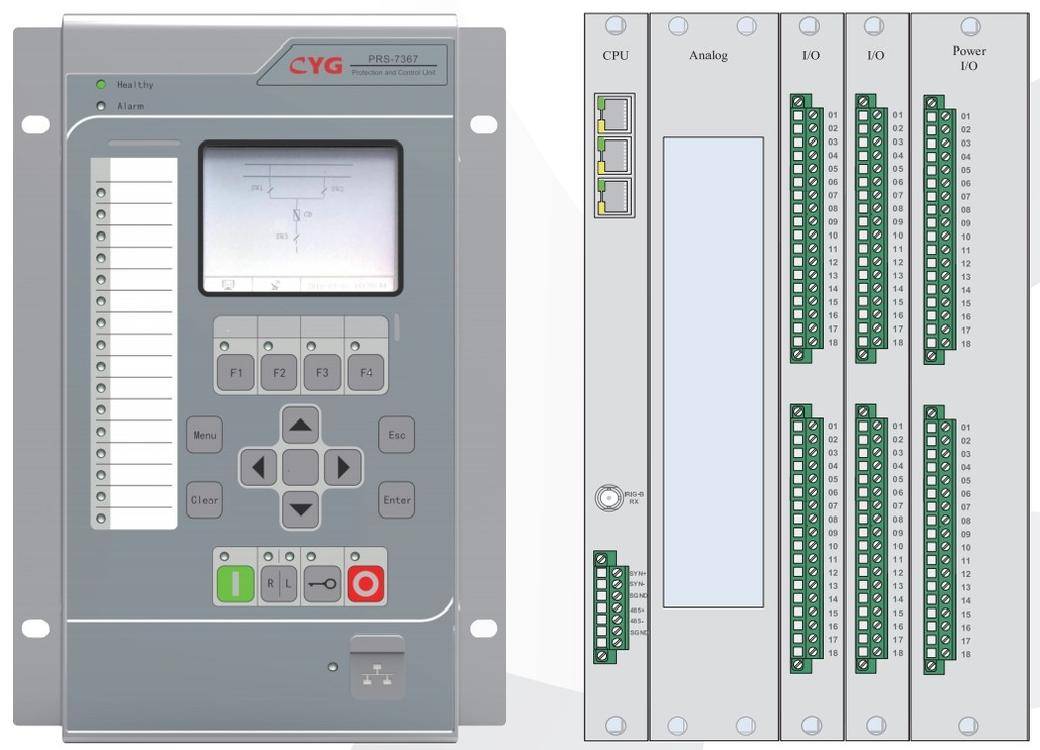

PRS-7367 Protection and Control Unit
Negotiable
China
No.13, Keji North 1st Road, North Area of Hi-Tech Industrial Park,Nanshan District, Shenzhen 518057, China
+86 755-33018888
sunsy@cyg.com
Product Introduction
parameter
| Item | Parameter |
|---|---|
| Performance | 32-bit high performance dual-core processor,internal high speed bus and intelligentl/0 ports |
| Hardware | Modularized hardware design,flexibly configurable,easy extension |
| Interface | The human machine interface(HMI)with a small control |
| module (a 320×240-dot LCD,a 16-key keypad and 18 LED indicators | |
| Communication | Ethernet network,RS-485 serial ports.Communication protocol optional: IEC61850,IEC60870-5-103,DNP3.0 or ModBus. |
| Analog | Support the protocol IEC60044-8,IEC61850-9-2 and GOOSE,constantly measures and calculates voltage,current,power and frequency. |
| Recording | Fault and disturbance waves,operation reports,supervision,control operation records and time tagged sequence of event. |
