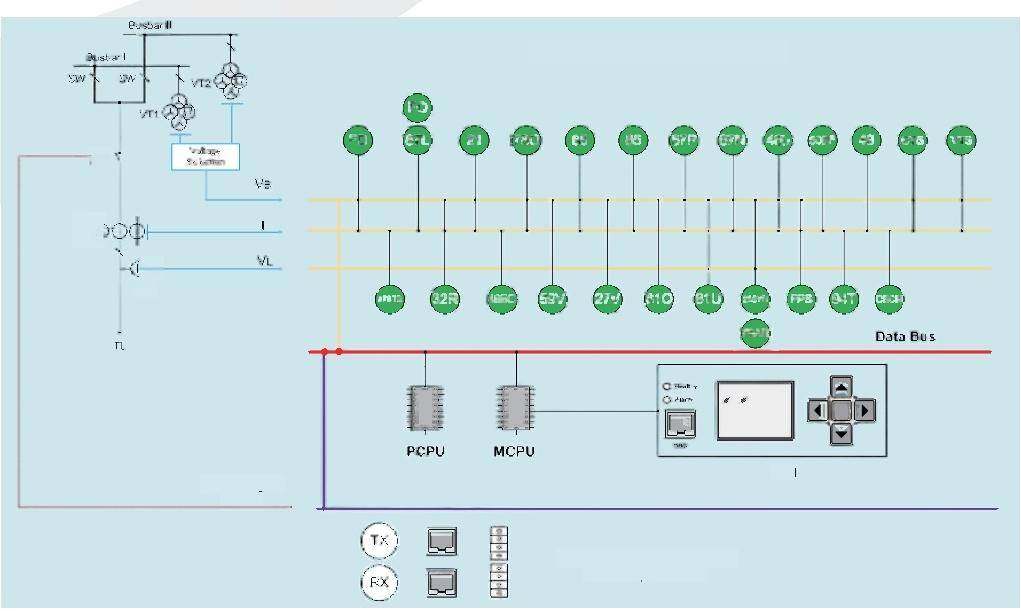

The PRS-753 is a numerical line differential and distance protection intended for protecting and monitoring various line arrangement of various voltage level,ranging from 1000kVto 110kV.PRS-753 can detect and clear all types of internal phase-to-phase and phase-to-earth faults locating within the line protection zone.
1/4

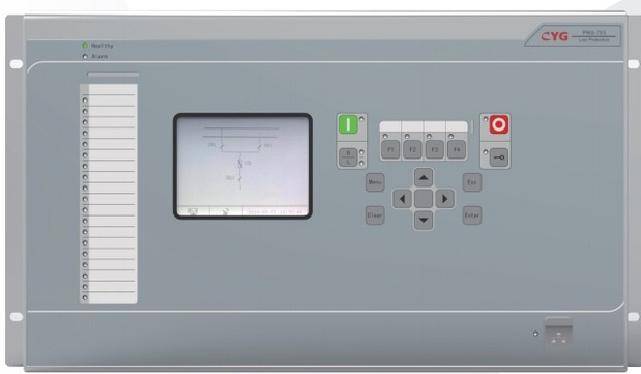

PRS-753 Line Protection
Negotiable
China
No.13, Keji North 1st Road, North Area of Hi-Tech Industrial Park,Nanshan District, Shenzhen 518057, China
+86 755-33018888
sunsy@cyg.com
Product Introduction
parameter
| ltem | Parameter |
|---|---|
| Performance | 32-bit high performance dual-core processor,internal high speed bus and intelligent I/O ports |

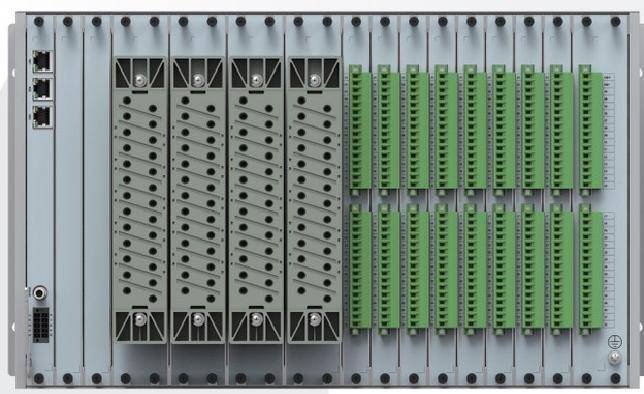

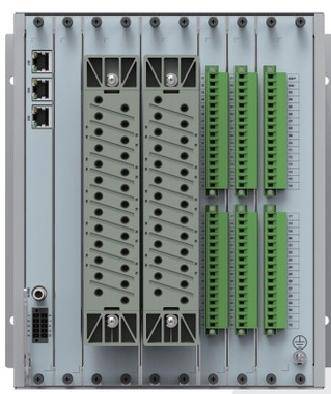

| Hardware | Modularized hardware design,flexibly configurable,easy extension |
| Interface | The human machine interface(HMI)with a small control module(a 320×240-dot LCD,a 16-key keypad and 21 LED indicators) |
| Communication | Ethernet network,RS-485 serial ports.Communication protocol optional: IEC61850,IEC60870-5-103,DNP3.0 or ModBus. |
| Analog | Support the protocol IFC60044_8 IFC61850-9-2 and GOOSE constantly measures and calculates voltage, current,power and frequency. |
| Recording | Fault and disturbance waves,operation reports,supervision,control operation records and time tagged sequence of events. |
