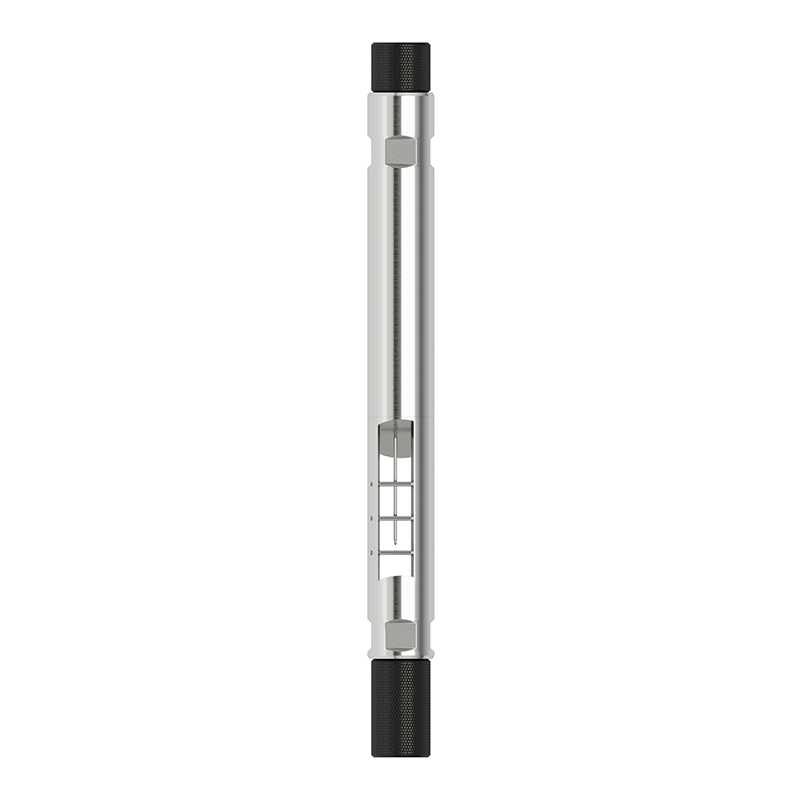

Well Temperature Logging Tool (RDT04)
Negotiable
Xi'an Well-sun Electronic Technology PLC
China
No. 5, West of Qinling 3rd Road, Caotang Science and Technology Industrial Base, High-tech Zone, Xi’an, Shaanxi Province
+86 18792563409
Online Contact
Favorite
Product Introduction

The Well Temperature Logging Tool (RDT04) is primarily used to detect fluid temperature, providing information for fluid property analysis. Compared to similar instruments, its advantages are as follows:

  1. Fast-response temperature probe
  2. High-speed data acquisition and transmission
  3. High sensitivity
Product Specifications

Outer diameter

43mm(1 11/16")

Maximum operating temperature

175°C (347 °F)

Maximum working pressure

103MPa(15000Psi)

Connection length

363mm(14.29")

Instrument length

458mm(18.03")

Zero long

87mm(3.43″)

Weight

2Kg(4.4lbs)

Operating voltage

18VDC

Working current

40±3mA

Instrument Bus Protocol

WSTbus

Temperature measurement range

0~175 ℃

Temperature measurement resolution

0.005 ℃

Temperature measurement accuracy

± 0.5 ℃

Response time

≤ 0.8s

Logging velocity

>400m/h

Upper and lower docking standard

WSDJ-GoA-1A
