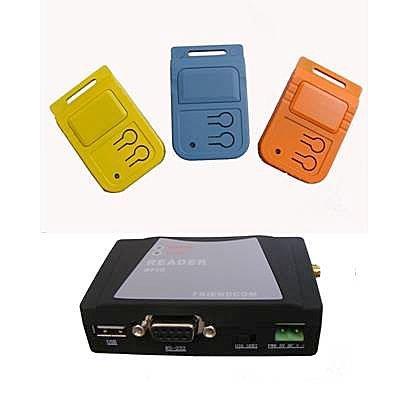

active rfid system fc-406: applications . mine worker tracking security system . hospital intelligent management . school security system . intelligent residential area management . prison security management . asset trac......active rfid system fc-406: applications . mine worker tracking security system . hospital intelligent management . school security system . intelligent residential area management . prison security management . asset tracking and management . entry management features: low pwer consumption design,battery life 1-2years able to replace battery ip67 water-proof level two call buttons anti-collision design two-color led display speaker inside tags range between tag and reader over 100 meters rfid system is composed of three parts: tag乫each tag has a single id code. reader: the device for reading or writing the tag information. it has two kinds of reader: fixed reader and handheld reader. antenna: to transfer the signal between the reader and the tag. the reader provide the standard rs-232 interface and usb interface, the interface rate is 19200bps(8n1). specification: tags frequency :433.92mhz,868mhz,915mhz rf data rate :19.2kbit/s modulation:fsk dimension: 65mm42mm14mm housing: abs memory:read/wirte, 1k bytes storage temperature: -30乧--+70乧 reader frequency :433.92mhz,868mhz,915mhz rf data rate :19.2kbit/s modulation:fsk dimension: 85mm55mm25mm housing: abs storage temperature: -30乧--+70乧
