en.Wedoany.com Reported - A Current Transformer is an important electrical device used in power systems, industrial distribution networks, substations, power plants, renewable energy stations, rail transit and large building power systems. Its main function is to convert high primary current into a smaller secondary current in a defined ratio, allowing meters, relay protection devices, automation systems and monitoring equipment to operate safely and accurately.
In power engineering, primary circuit current is often too large to be connected directly to instruments or protection devices. A current transformer provides current conversion and electrical isolation through electromagnetic induction. This allows secondary equipment to obtain current information from the primary system safely. For metering systems, current transformer accuracy affects electricity measurement and billing. For relay protection systems, saturation behavior, ratio error and transient performance can influence protection sensitivity and reliability.

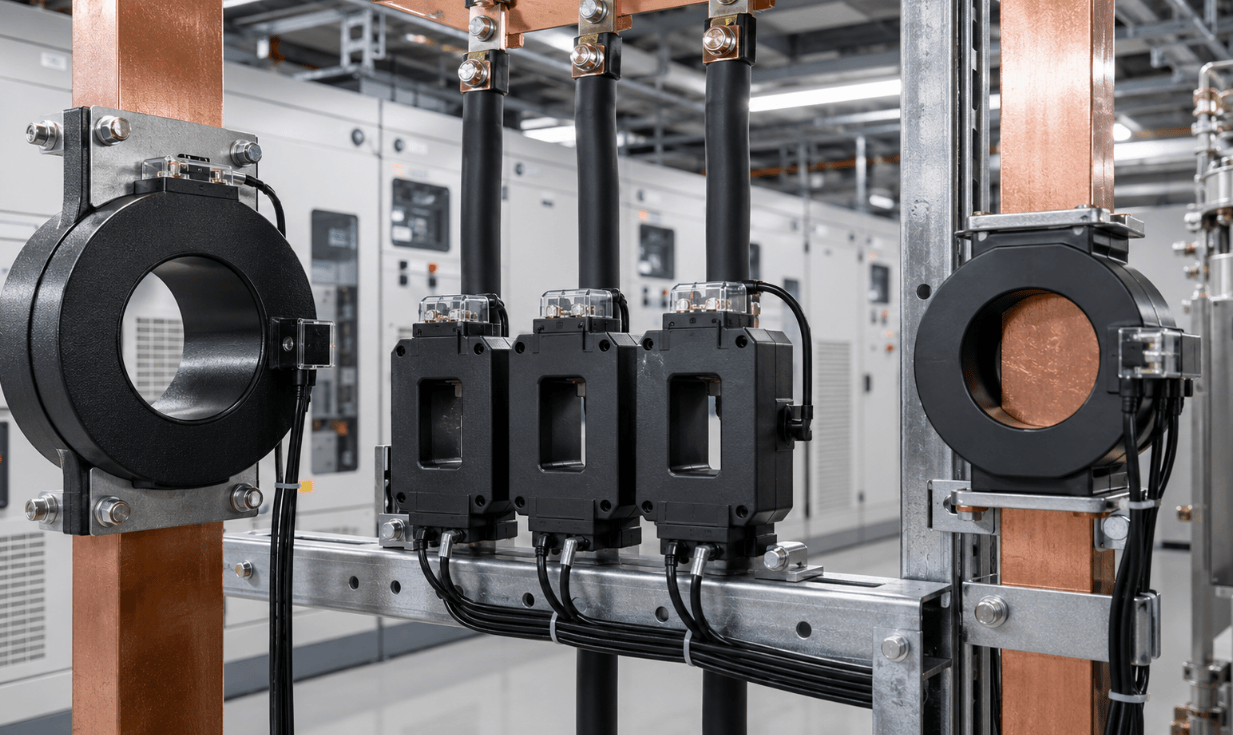

Common types include dry-type current transformers, oil-immersed current transformers, epoxy resin cast current transformers, window-type current transformers, split-core current transformers, busbar current transformers and protection current transformers. Different types are used for different voltage levels, installation methods and application environments. Low-voltage distribution systems often use split-core or window-type current transformers because they are easy to install and retrofit. Medium- and high-voltage switchgear and substations place more emphasis on insulation level, thermal stability and dynamic stability.
Current transformer selection should not be based only on transformation ratio. Project owners also need to consider rated voltage, rated primary current, secondary current, accuracy class, rated burden, short-time thermal current, dynamic current, insulation level and installation environment. If a metering current transformer has insufficient accuracy, billing errors may occur. If a protection current transformer saturates too easily, fault current information may be distorted and protection judgment may be affected.
In industrial power systems, current transformers also support energy monitoring and equipment condition analysis. By collecting current data from motors, transformers, distribution circuits and key loads, enterprises can analyze load changes, identify abnormal power consumption and evaluate equipment operation. As intelligent distribution and energy management platforms become more common, current transformers are expanding from traditional measuring components into basic sensing devices for digital power systems.
Installation and maintenance also influence performance. Secondary circuit open circuits, wiring errors, reversed polarity, burden mismatch and long-term overload may cause measurement abnormalities or safety risks. In particular, the secondary side of an operating current transformer must not be open-circuited, because dangerous high voltage may be induced and endanger equipment or personnel.

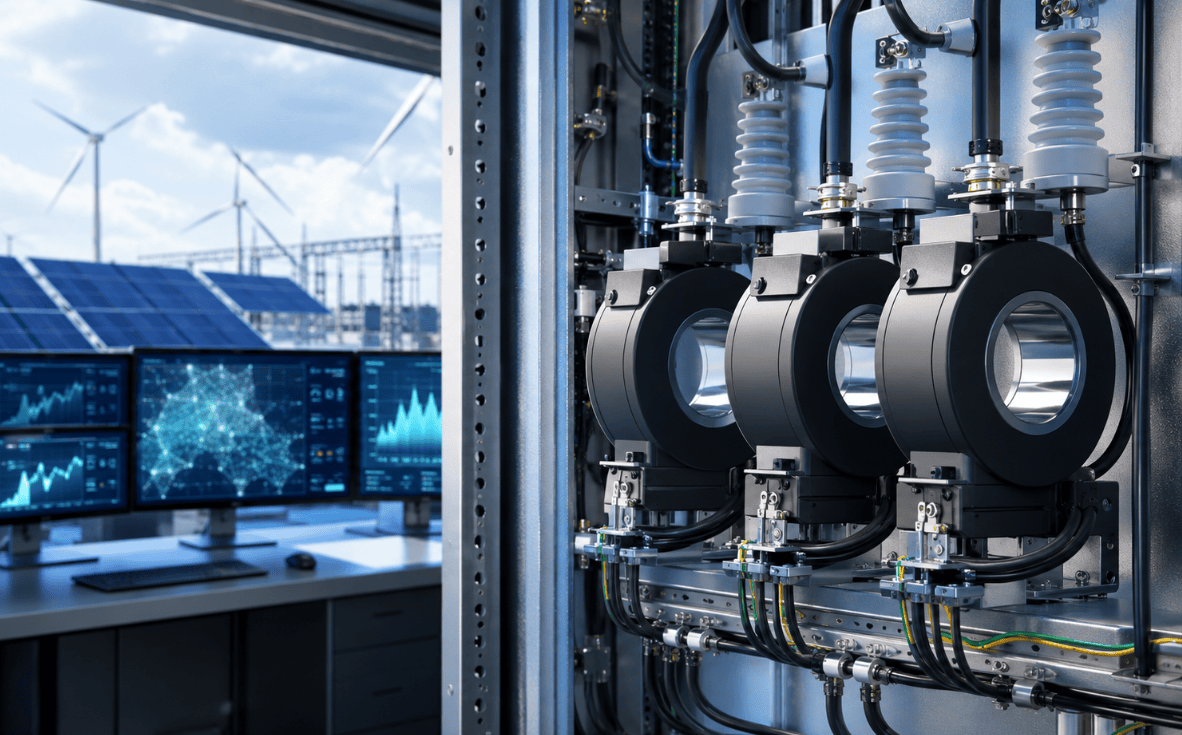

In the future, current transformers will develop toward miniaturization, intelligence, high precision and digitalization. Electronic current transformers, optical fiber current sensors and intelligent current transformers with communication capability will find more applications in smart substations, renewable energy grid connection, data centers and high-end industrial scenarios.
Overall, a current transformer is the key device that allows a power system to “see” current. Only by selecting the correct ratio, accuracy, insulation level and application type can projects ensure accurate metering, reliable protection and long-term stable distribution system operation.
