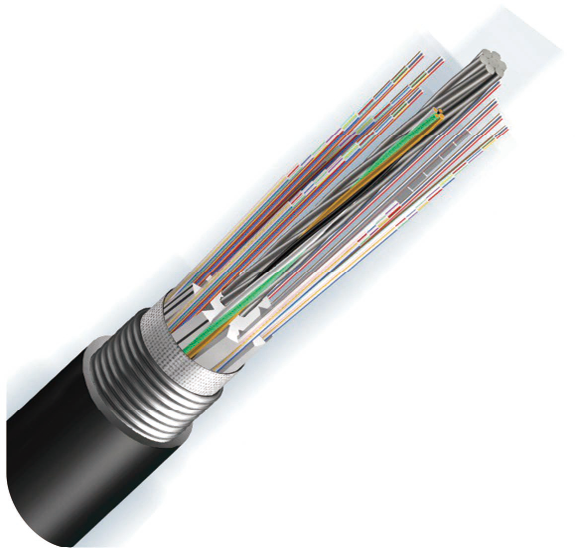

Skeleton-type Optical Fiber Ribbon Cable GYDGA (40-1200 Cores)

Negotiable

Located Region:

China

Address:

18th Floor, Building B, Special Information Port Building, Kefeng Road, Central District, High-tech Zone, Nanshan District, Shenzhen

Biz Consulting:

15574644746

E-mail:

huyq@sdgi.com.cn

Online Contact

Favorite

Model	Optical fiber ribbon series	Number of cores	Rotary direction	Center reinforcement	Maximum number of cores per slot	Outer diameter of framework (mm)	Water-blocking band width (mm)	Aluminum bandwidth (mm)	Sheath thickness (mm)	Optical cable reference outer diameter (mm)	Reference weight of optical cable (Kg/KM)	Minimum bending radius		Allowable minimum tension (N)		Allowable minimum lateral pressure (N/100mm)
												Static	Dynamic	Short-term	Long term	Short-term	Long term
1	4 core tape	100	SZ	2.3BL	20	9.0	35	39.0	1.8	14.1	161	10 times	20 times	1500	600	1000	300
2		200	SZ	2.3BL	20	12.5	35	49.5	1.8	17.6	227	Cable outer diameter	Cable outer diameter

Model	Optical fiber ribbon series	Number of cores	Rotary direction	Maximum number of cores per slot	Outer diameter of optical cable (mm)	Weight of optical cable (Kg/KM)	Minimum bending radius		Allowable minimum tension (N)		Allowable minimum lateral pressure (N/100mm)
Model	Optical fiber ribbon series	Number of cores	Rotary direction	Maximum number of cores per slot	Outer diameter of optical cable (mm)	Weight of optical cable (Kg/KM)	Static	Dynamic	Short-term	Long term	Short-term	Long term
1	4 core tape	40	Z	12	10.9	110	10 times cable outer diameter	20 times cable outer diameter	1500	600	1000	300
2		60	Z	16	11.6	129
3		96	Z	20	13.1	164
4		100	Z	24	12.8	151
5		144	Z	20	14.3	188
6		160	Z	20	15.1	202
7		200	Z	24	16.6	237
8		216	Z	24	16.5	236
9		288	Z	20	19.3	306
10		300	Z	24	20.4	333
11	6 core tape	96	Z	24	12.7	158
12		120	Z	24	13.9	174
13		144	Z	36	14.5	190
14		216	Z	36	17.1	243
15		288	Z	48	17.8	265
16		384	Z	48	20.3	333
17		432	Z	60	21.3	372
18		600	Z	60	23.9	450
19		720	Z	80	26.1	530
20	8 core tape	400	Z	80	20.1	347
21		600	Z	80	23.1	452
22		1000	Z	48	29.5	695
23	12 core tape	144	Z	72	15.0	192
24		288	Z	96	17.3	258
25		360	Z	108	19.1	307
26		432	Z	84	19.8	331
27		504	Z	96	21.6	394
28		576	Z	108	21.6	402
29		648	Z	120	22.3	428
30		720	Z	108	23.3	463
31		864	Z	108	24.6	505
32		1080	Z	120	27.9	632
33		1200	Z	12	29.0	679
