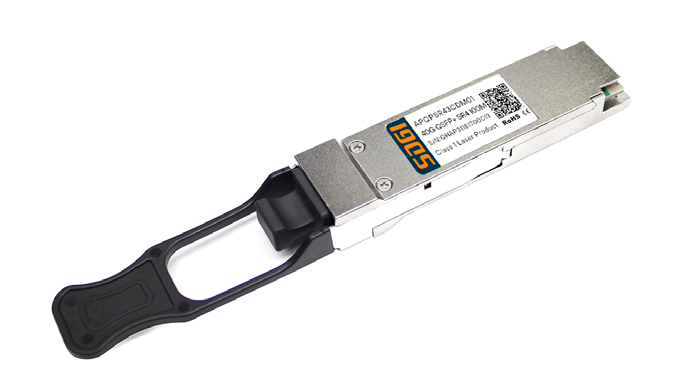

The 40G SR4 is designed for 40 Gigabit/s transmission over parallel multimode fiber, including four 10G/s branch links. It complies with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 protocols, and is compatible with IEEE 802.3ae 10GBASE-SR4, supporting up to 100 meters of multimode fiber transmission. The optical interface uses an MPO connector. This 40G optical module complies with RoHS certification standards and lead-free standards.

Product Specifications

○ Package: QSFP+

○ Transmission Rate: 40G

○ Wavelength: 850nm

○ Optical Power: -7.6~+2.4dBm

○ Sensitivity: -9.5dBm

○ Optical Device: VCSEL/PIN

○ Interface: MPO

○ Operating Temperature Range: C

○ Transmission Distance: 100M

Application Scope

○ 40G Ethernet

○ Connections between switches, routers, and servers
