LNG Storage Tanks are double walled tanks mainly designed for static storage of LNG, using perlite or multi-layer winding and high vacuum for thermal insulation. According to the site condition or customer requirement, the tank can be designed in vertical or horizontal type with different volume capacities. These tanks are widely used in different-size LNG liquefaction plants, LNG/L-CNG Refueling Station, Regasification Station and other industrial applications, etc.
1/1

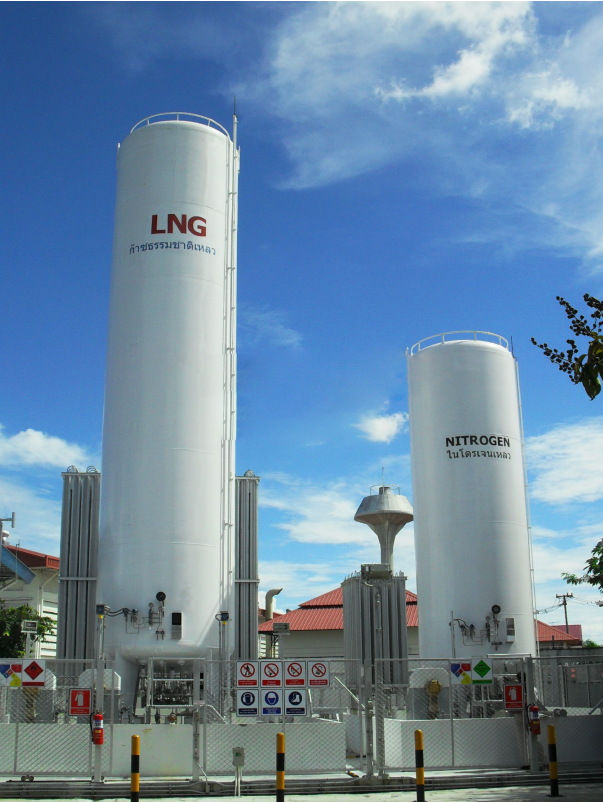

LNG Storage Tank
Negotiable
China
169 Yuxiang Street, Shijiazhuang Equipment Manufacturing Base, Hebei Province
+86-311-81663811
gasequipment@enricgroup.com
Product Introduction
Product Parameters
|
Capacity (M³) |
Fluid |
Design Code |
Filling Ratio |
Structure (Kg) |
Loading Weight (Kg) |
|
30 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
11610 |
|
50 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
19350 |
|
60 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
23220 |
|
80 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
30960 |
|
100 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
38700 |
|
150 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
58050 |
|
200 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
77400 |
|
250 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
96750 |
|
300 |
LNG |
ASME/PED/GB |
90% |
Vertical Horizontal |
116100 |
*The weight is calculated according to LNG density 430Kg/M³
