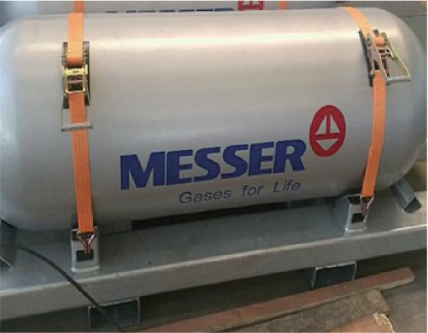

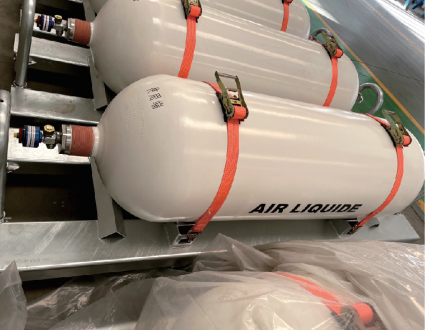

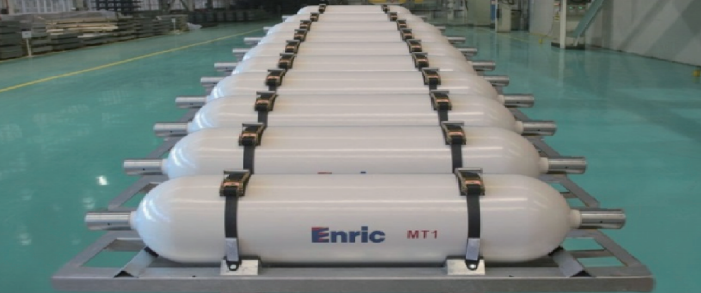

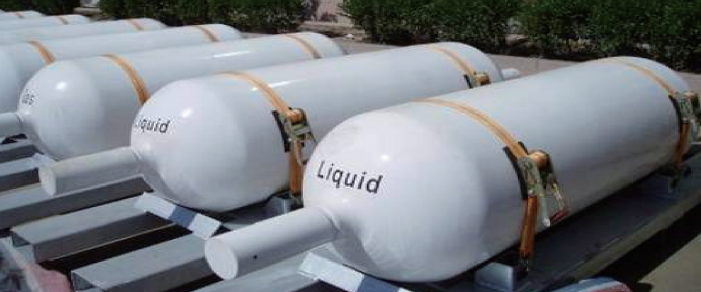

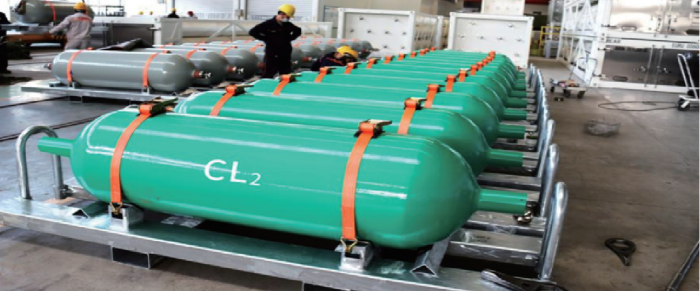

Y Cylinders

Item

Parameter

Nominal Working Pressure Mpa

16.6

Working Temperature ℃

-40~60

Design Thickness of Wall mm

15

Classis Volume L

440/470

Suitable Medium

Permanent Gas

Fluorine nitrogen mixture, carbon monoxide and its mixture with hydrogen, phosphane and hydrogen mixture, etc.;

Liquefied Gas

High-pressure liquefied gas: anhydrous hydrogen chloride, nitrous oxide, silane (SiH₄), nitrogen trifluoride, tetrafluoromethane, sulfur hexafluoride silicon tetrafluoride, boron trifluoride, hexafluoroethane, carbon dioxide, vinylidene fluoride, xenon, trifluoromethane, etc.;

Low pressure liquefied gas: ammonia, chlorine, octafluoropropane, octafluorocyclobutane, boron trichloride, hydrogen bromide, etc.;

Manufacture Standard

1 ADR, RID, TPED, ISO, DOTUN - export cylinders or intermodal cylinders

2 Product standard + gas cylinder safety technical supervision regulations - domestic use of gas cylinders
