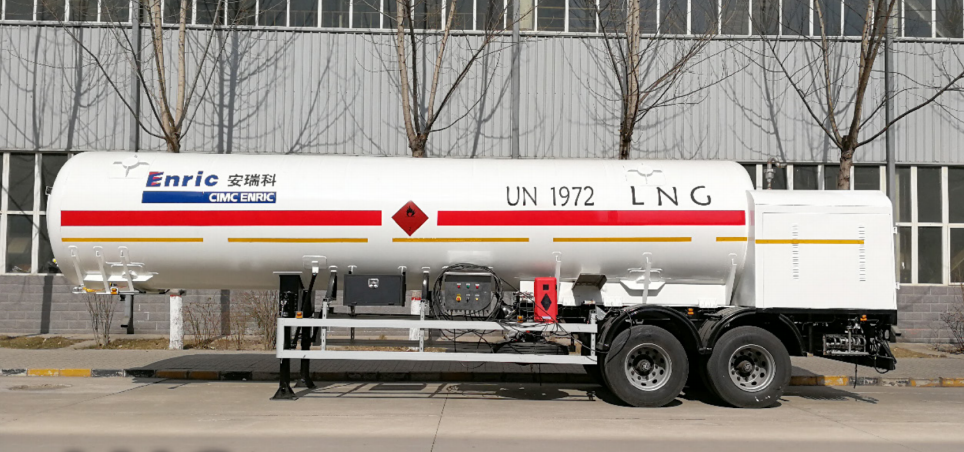

LNG Mobile Filling Truck
Negotiable
Shijiazhuang Enric Gas Equipment Co., Ltd.
China
169 Yuxiang Street, Shijiazhuang Equipment Manufacturing Base, Hebei Province
+86-311-81663811
Online Contact
Favorite
Product Introduction

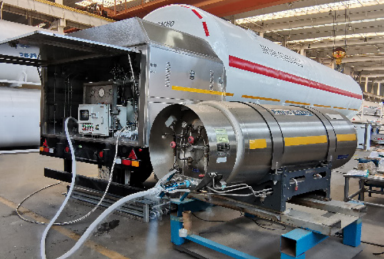

The integrated LNG Mobile Filling Truck is applied for flexible operation or refueling in remote areas. The system is consisted of skid-mounted chassis, LNG storage tank, submerged pump, LNG dispenser, EAG vaporizer and unloading piping, liquid loading piping and pressurization piping. Other systems include instrument air system, gas alarm system, lighting system and PLC control system.

Product Parameters

Capacity (M³)

Loading Weight (kg)

Standard

Working Pressure (Bar)

Filling Device

Total Weight (kg)

15.7

9000

GB

15

PBU

15015

39.6

14900

GB

12

Submerged Pump

35000

44.5

17220

ASME(U1)

6.5

Centrifugal Pump

35300

*The weight is calculated according to LNG density 426Kg/M³
