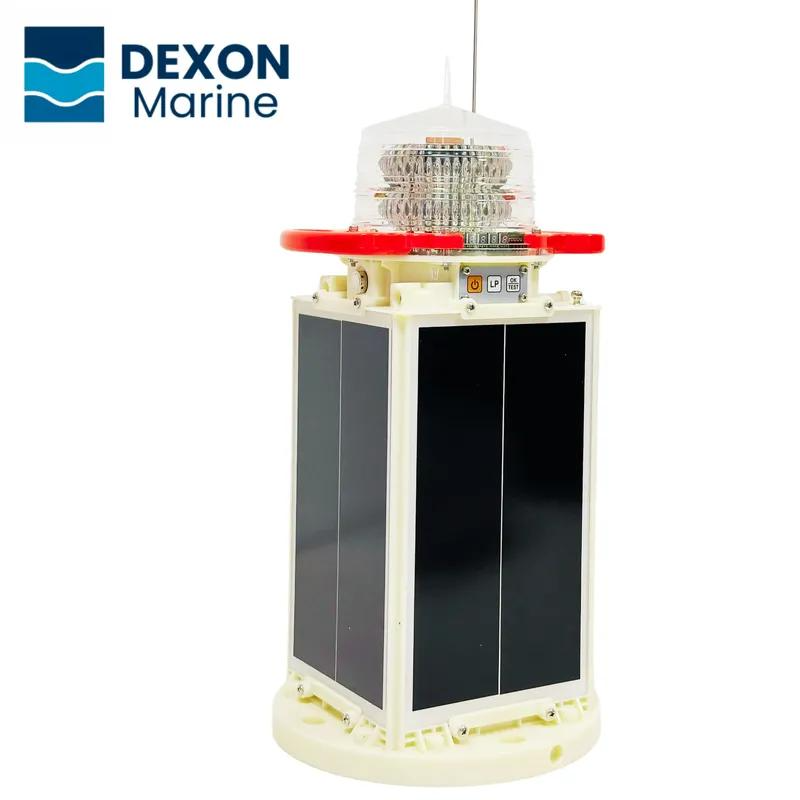

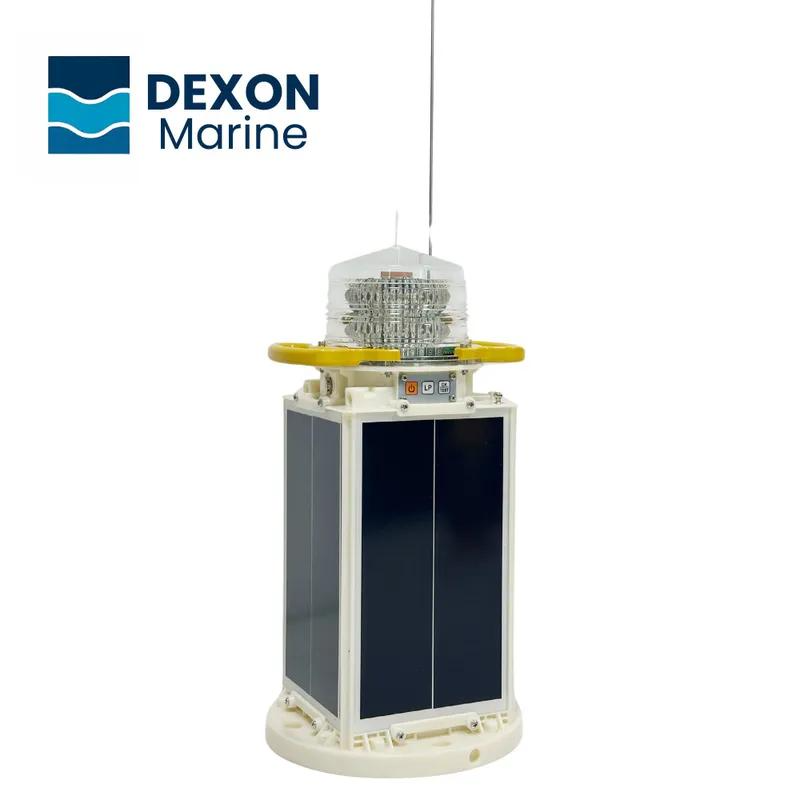

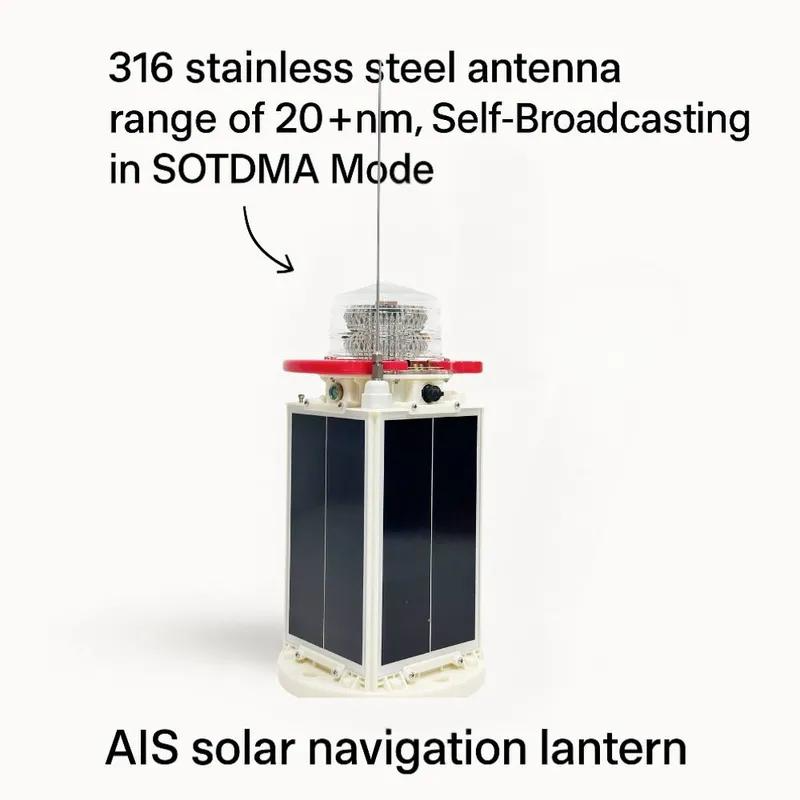

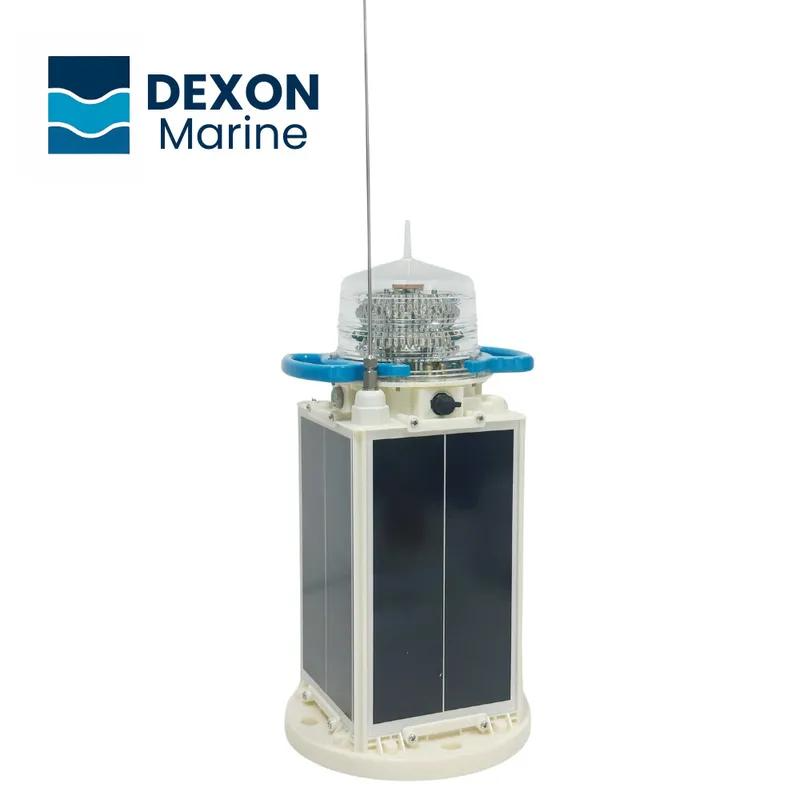

Solar Powered AIS Marine Navigation Light for Buoys or Port Entrances

EXW

$1,433.21-2,866.42 /Unit

Chengdu Dixin Technology Co., Ltd.

Located Region:

China

Address:

No.2, 1st Floor, Building 1, No.4 Xinhang Road, High-Tech Zone, Chengdu City, Sichuan Province

Biz Consulting:

+86 13088029888

E-mail:

hunkm448@gmail.com

Online Contact

Favorite

Product Description

Solar-powered LED light with AIS support for remote buoys and port entrances, equipped with a digital photosensitive sensor that automatically adjusts brightness to achieve optimal visibility and energy-saving effects. No manual operation is required, and remote support is available through an optional chip. This is particularly suitable for hard-to-reach locations in the ocean. The fixed dimensions of this navigation light meet standard requirements, making it compatible with both newly installed buoy systems and existing buoy systems. It supports comprehensive customization to match your project's requirements for color, signal, or power needs.

Core Advantages:

1.Digital photosensitive sensor automatically adjusts brightness to improve visibility and energy efficiency.

2.Optional remote maintenance chip enables hands-free repairs in hard-to-reach areas.

3.Standard-compliant mounting method, suitable for both new and existing buoy systems.

4.Fully customizable to meet specific color, signal, or power requirements.

5.Ideal for unmanned marine sites requiring intelligent, low-maintenance operation.

Product Details

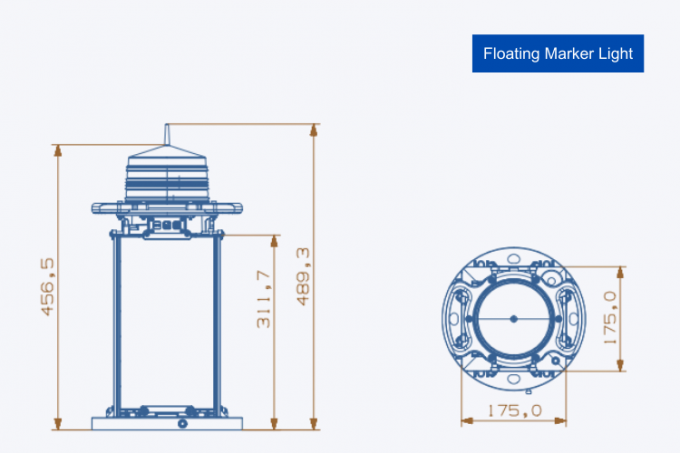

Dimension Diagram:

Application Fields

Buoys
Beacons
Port Entrances
Offshore Platforms
Floating AtoN Installations

Classification	Name	Parameter Index
Overall machine features	Operating voltage	DC:10.5V-14.4V
	External charger	DC 14.8V ≤8A
	Solar panels	4*7W
	Charging current	Typical charging current about 400mA
	Working temperature	-35 ℃-+65 ℃
	Parameter loading	RS232, button, Bluetooth
	Waterproof grade	IP68
	Weight	Floating marker lamp: 7.5-9.5Kg
	Overall dimension	Floating marker lamp: 240mm * 240mm * 489mm
	Packing size	277mm * 281mm * 537mm
	Mounting dimensions	Compliance with national and international standards
	Continuous rainy weather working hours	≥ 25 days
Lamp Features	Luminous color	Red/Green/Yellow/White/Blue
	Synchronous flash	With synchronous flash function
	Light quality	256 kinds of adjustable
	Brightness	Set arbitrarily in units of 1%
	Daylight threshold	Digital photosensitive, adjustable threshold
	Irradiation distance	5-7nm
	Launch angle	Floating marker lamp ≥ 8"
AIS Features	Navigation mark function	AIS Entity Aids to Navigation
	Modulation mode	GMSK/FSK
	Frequency range	156.025MHz-162.025MHz
	AIS1 frequency	CH87B(161.975MHz)
	AIS2 frequency	CH88B(162.025MHz)
	Average power consumption	≤ 0.05W
	Transmit power	≤ 6W
	Receiving sensitivity	≤-110dBm
	Message Type	Messages 21 and 6 are adjustable and support multiple message formats
	Working mode	Default mode three SOTDMA(FATDMA, RATDMA, SOTDMA adjustable)
Battery Features	Battery Type	Lithium iron phosphate battery
Battery Features	Battery capacity	384Wh, 5128h, 665.6Wh
