As a critical piece of equipment for offshore wind power, GIS plays a very important role in ensuring the reliability, stability, and safety of the entire wind farm operation. Currently, the voltage level of the collector system for large-capacity offshore wind turbines in China has been upgraded from 35kV to 66kV, which requires GIS equipment with larger capacity and greater stability. Based on the current situation, Pinggao Group is committed to technological innovation in the energy sector, focusing on customer development needs, and has developed a compact, reliable, and economical 72.5kV GIS product for offshore wind turbines.
1/1

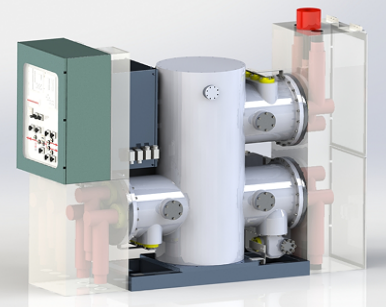

Offshore Wind Turbine 72.5kV GIS
Negotiable
China
No. 278 Huoju Road, Torch High-Tech Industrial Development Zone, Weihai City, Shandong Province
+86 631 5627756
pinggaowh@163.com
Product Introduction
Product Parameters
|
No. |
Project Name |
Unit |
Parameter Value |
|
1 |
Rated voltage |
kV |
72.5 |
|
2 |
Rated frequency |
Hz |
50 |
|
3 |
Rated current |
A |
1250 |
|
4 |
Rated short-time power frequency withstand voltage |
kV |
To ground: 160 |
|
Fracture: 160(+42) |
|||
|
5 |
Rated lightning impulse withstand voltage |
kV |
To ground: 380 |
|
Fracture: 380(+59) |
|||
|
6 |
Rated short-time withstand current |
kA |
31.5 |
|
7 |
Rated short circuit duration |
S |
3 |
|
8 |
Rated peak withstand current |
kA |
80 |
|
9 |
SF6 gas pressure |
MPa |
0.6/0.52/0.5 |
|
10 |
Annual leakage rate of SF6 gas |
% |
≤ 0.1 |
|
11 |
Product Weight |
t |
1.6 |
