72.5kV-252kV Dry Plug-in GIS Termination

Type/Applications:

• WYJZGGC
• Max.system voltage: 72.5kV, applicable to 150~1600mm²
• Max.system voltage: 126kV, applicable to 240~1600mm²
• Max.system voltage: 145kV, applicable to 240~1600mm²
• WYJZGGD
• Max.system voltage: 252kV, applicable to 400~2500mm²

Features:

1. Stress cone is injection-molded by excellent EPDM rubber. Secured by the spring cone carrier, our stress cone is designed with a stress cone cover so as to be isolated from insulated agent (avoiding poor contact between stress cone and cable outer semi-conductive layer or elastic relaxation due to stress cone ageing) ensures excellent electrical property.
2. Dry design eliminates risks of oil or gas leakage
3. Compact design with lightweight and small volume significantly saves mounting space.
4. Plug-in connection between termination and cables provides more convenient installation and maintenance.
5. Plug-in GIS termination is suitable for connection between power cable and transformer.
6. Short plug-in GIS termination can be refitted to equipments applicable to a long type GIS termination kit after assembled with an extending rod.
7. Type tested according to IEC60840, GB/T11017, IEC 62067, GB/T18890.

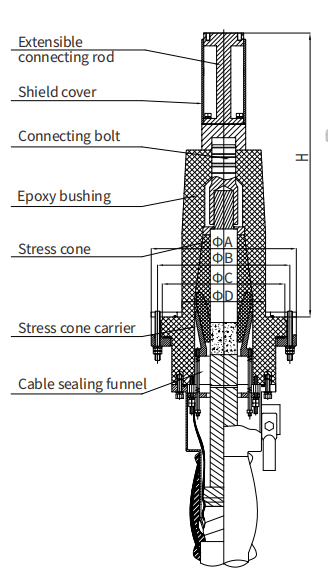

Outline Dimension

Notice When Ordering:

• 1.Cable configuration and the cross-sectional area of earth wire shall be informed when ordering.
• 2.All GIS termination and GIS composite apparatus produced in our company are strictly in accordance with IEC 62271-209 and GB/T 22381. When ordering, please submit relevant information including executive standards and interface height or assembly drawing of GIS composite apparatus to ensure correspondent dimension matches up.
• 3. Silicone rubber products are available upon request.
