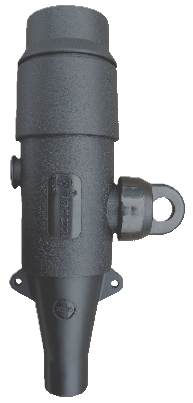

WEZC 24/250 250A Plug-in Type Straight Connector

Negotiable
SHENZHEN WOER ELECTRIC TECHNOLOGY CO., LTD.
China
Room 301, Woer Industrial Plant, Building 6-1, Qingsong Road No. 53, Zhukeng Community, Longtian Street, Pingshan District, Shenzhen, China
15814620079
Online Contact
Favorite
Product Introduction

*Up to 24kV
6/10(12) kV
6.35/11(12) kV
8.7/15(17.5) kV
12/20(24) kV
12.7/22(24) kV

Product Parameters

Technical Data

Voltage Class 12kV 17.5kV 24kV
Continuous Current 250A 250A 250A
AC Withstand Voltage 28.5kV for 5min 39kV for 5min 54kV for 5min
Partial Discharge 11kV, ≤10pC 15kV, ≤10pC 20kV, ≤10pC
Lightning Impulse Voltage (10 times for each polarity) 95kV 95kV 125kV
Screen Resistance ≤5000Ω ≤5000Ω ≤5000Ω
