Features
- Manufactured from high quality epoxy resin
- Meeting bushing requirements of interface type C per EN 50181
- Applicable to gas-filled apparatus.
1/2

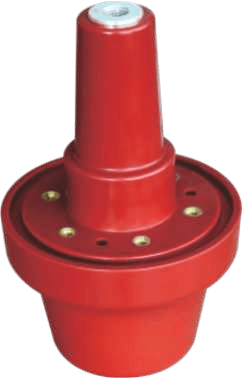

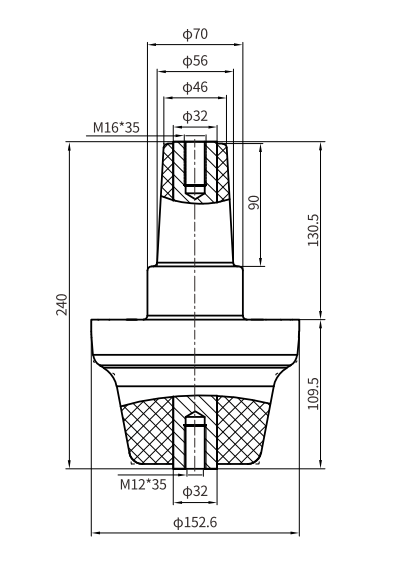

40.5kV 1250A Gas-filled Apparatus Bushing
Negotiable
China
Room 301, Woer Industrial Plant, Building 6-1, Qingsong Road No. 53, Zhukeng Community, Longtian Street, Pingshan District, Shenzhen, China
15814620079
inquiry1@woer.com
Product Introduction
Product Parameters
| Voltage Class | 40.5kV |
| Continuous Current | Up to 1250A |
| AC Withstand Voltage | 95kV for 1min |
| Partial Discharge | 45kV, ≤10pC |
| Lightning Impulse Voltage (10 times for each polarity) | 200kV |
