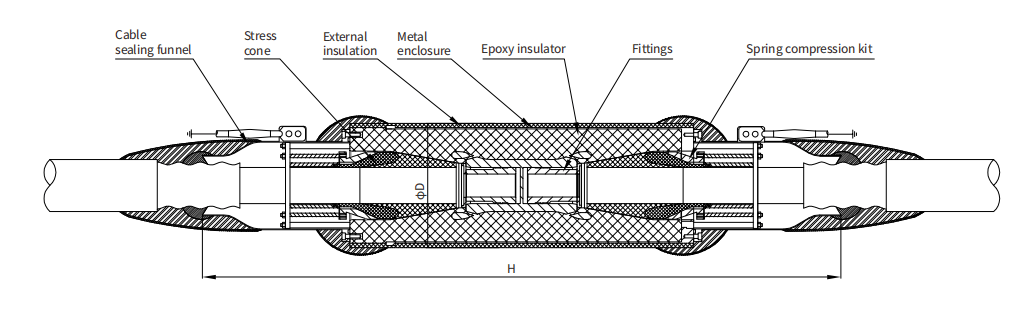

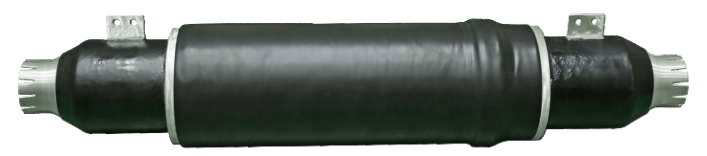

72.5kV-252kV Composite type cable joint

Type/Applications:

Type/Applications: WYJJ(T)Z
Max.system voltage: 72.5kV, applicable to 120~1600mm²
Max.system voltage: 126kV, applicable to 240~1600mm²
Max.system voltage: 145kV, applicable to 240~1600mm²
Max.system voltage: 252kV, applicable to 400~2500mm²

Features:

1. Composite type cable joint body is vacuum injection molded by thermosetting resin or insulated rubber, of which wholly dry construction prevents potential oil-leakage.
2. One-piece design and outer metal enclosure provides such properties as water-proofing, damp resistance and mechanical stress resistance to maintain operation under various conditions.
3. Compact structure and small volume save its installation space. Installation available in cable well, cable duct or direct bury.
4. Wholly prefabricated in factory. No filler and insulated gas is required. Simply insert two prepared cables of any cross-sections into the joint body.
5. Type tested according to IEC 60840, GB/T11017, IEC 62067,GB/T 18890.

Notice When Ordering:

• 1.Cable configuration and the cross-sectional area of earth wire shall be submitted when ordering.
• 2.Feel free to contact our sales manager before ordering if you have any special requirements.
