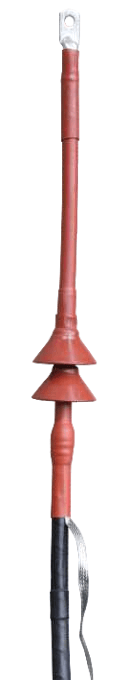

The indoor termination is designed for screened single core polymeric insulated MV cables up to 35kV.
Yellow stress relief mastic is laid around the end of the screen cut. Stress control tube, together with stress relief mastic, is used to smooth out the electrical field at the cable screen end. Anti-tracking insulation tube and sealing tube seal between the end of the oversheath and the cable lug. Anti-tracking rain sheds lengthen surface creepage distance to ensure safety.
| Nominal voltage Uo/Um(Um) |
Cross section (mm²) | Kit No. | Dimensions(mm) | No. of rain sheds |
|
|---|---|---|---|---|---|
| L | D | ||||
| 3.6 / 6(7.2)kV | 50-120 | 6kVRSNY-1/1 | 800 | - | 0 |
| 150-240 | 6kVRSNY-1/2 | ||||
| 300-400 | 6kVRSNY-1/3 | ||||
| 500 | 6kVRSNY-1/4 | ||||
| 6 / 10(12)kV 6.35 / 11(12)kV |
50-95 | 10kVRSNY-1/1 | 800 | - | 0 |
| 120-185 | 10kVRSNY-1/2 | ||||
| 240-300 | 10kVRSNY-1/3 | ||||
| 400-500 | 10kVRSNY-1/4 | ||||
| 630 | 10kVRSNY-1/5 | ||||
| 8.7 / 15(17.5)kV | 25-50 | 10kVRSNY-1/1 | 800 | - | 0 |
| 70-120 | 10kVRSNY-1/2 | ||||
| 150-240 | 10kVRSNY-1/3 | ||||
| 300-400 | 10kVRSNY-1/4 | ||||
| 500-630 | 10kVRSNY-1/5 | ||||
| 12 / 20(24)kV 12.7 / 22(24)kV |
35-50 | 20kVRSNY-1/1 | 800 | 105 | 2 |
| 70-120 | 20kVRSNY-1/2 | 105 | |||
| 150-240 | 20kVRSNY-1/3 | 105 | |||
| 300-400 | 20kVRSNY-1/4 | 140 | |||
| 500-630 | 20kVRSNY-1/5 | 140 | |||
| 800-1000 | 20kVRSNY-1/6 | 140 | |||
| 1200 | 20kVRSNY-1/7 | 140 | |||
| 18 / 30(36)kV 19 / 33(36)kV |
35-50 | 30kVRSNY-1/1 | 800 | 105 | 4 |
| 70-120 | 30kVRSNY-1/2 | 105 | |||
| 150-240 | 30kVRSNY-1/3 | 140 | |||
| 300-400 | 30kVRSNY-1/4 | 140 | |||
| 500-630 | 30kVRSNY-1/5 | 140 | |||
| 800-1000 | 30kVRSNY-1/6 | 140 | |||
| 1200 | 30kVRSNY-1/7 | 140 | |||
| 20.8 / 36(42)kV 26 / 35(42)kV |
50 | 35kVRSNY-1/1 | 800 | 140 | 4 |
| 70-120 | 35kVRSNY-1/2 | 140 | |||
| 150-240 | 35kVRSNY-1/3 | 140 | |||
| 300-400 | 35kVRSNY-1/4 | 140 | |||
| 500-630 | 35kVRSNY-1/5 | 140 | |||
| 800-1000 | 35kVRSNY-1/6 | 140 | |||
| 1200 | 35kVRSNY-1/7 | 140 | |||
Note:
Remark: Above cross-section range selection is for reference, the final determination factor is the diameter over insulation.
