SGZ900 series scraper conveyor, according to different geological conditions and production requirements of coal mines, has developed a variety of products with different unloading methods, drive types, installed power, chain specifications, etc. Automation monitoring and intelligent expert systems can be optionally equipped according to the needs of intelligent working face construction. The series of products can be matched with SZZ1000 series transfer conveyors, PLM3000 series crushers and corresponding types of shearers and hydraulic supports. It is mainly used for coal mining in thin coal seams and medium-thick coal seam working faces, meeting the production requirements of working faces with an annual output of (300 ~ 600) ten thousand tons.
1/1

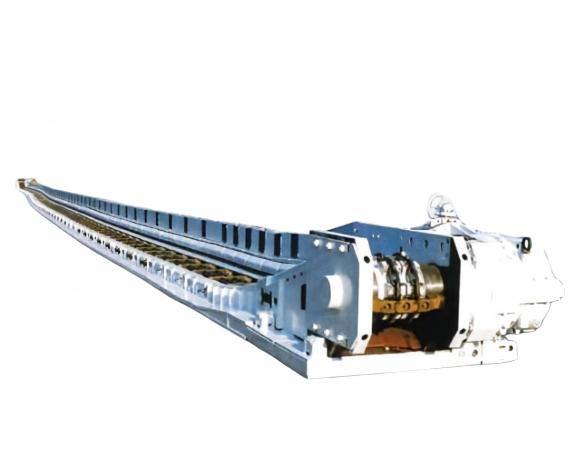

SGZ900 Series Scraper Conveyor
Negotiable
China
No.1, Jingong Road, Dawukou District, Shizuishan City, Ningxia
0952-2174334
tdbnjt@163.com
Product Introduction
Product Parameters
| Item | SGZ900 Series |
|---|---|
| Conveying Capacity (t/h) | 1500 ~ 1800 |
| Design Length (m) | 150 ~ 320 |
| Installed Power (kW) | 2 × (315 ~ 855) |
| Chain Speed(m/s) | 1.2 ~ 1.5 |
| Scraper Chain Type | Medium Double Chain |
| Chain Specification(mm) | Φ34 × 126 Round Link Chain Φ34 × 126 Compact Chain Φ34/86 × 126 Ultra-Flat Chain Φ38 × 137 Compact Chain Φ42 × 146 Compact Chain |
| Middle Trough Specification(mm) | 1500 × 900 × 310 (345) 1750 × 900 × 310 (345) |
| Middle Trough Structure | Cast-Welded, Integral Casting |
| Pin Rail Pitch(mm) | 126, 147, 151, 176 |
| Unloading Method | End Unloading, Cross Side Unloading |
