SGZ730/764 series scraper conveyor, according to different geological conditions and production requirements of coal mines, has developed a variety of products with different unloading methods, drive types, installed power, chain specifications, etc. Automation monitoring and intelligent expert systems can be optionally equipped according to the needs of intelligent working face construction. The series of products can be matched with SZZ730, SZZ764 series transfer conveyors, PLM1000 series crushers and corresponding types of shearers and hydraulic supports. It is mainly used for coal mining in thin coal seams and medium-thick thin coal seam working faces, meeting the production requirements of working faces with an annual output of (100～200) ten thousand tons.
1/1

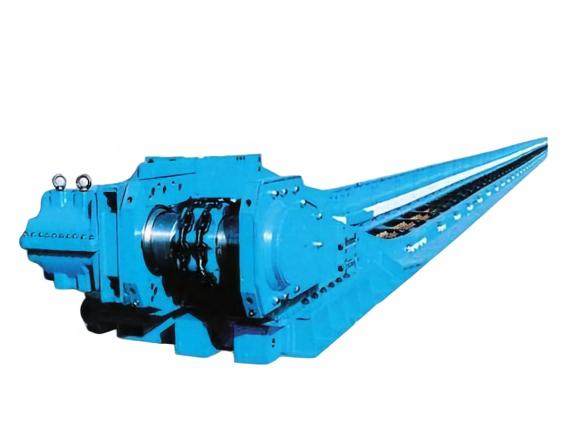

SGZ730/764 Series Scraper Conveyor
Negotiable
China
No.1, Jingong Road, Dawukou District, Shizuishan City, Ningxia
0952-2174334
tdbnjt@163.com
Product Introduction
Product Parameters
|
Item |
SGZ730 Series |
SGZ764 Series |
|
Conveying Capacity(t/h) |
600～700 |
800～1000 |
|
Design Length(m) |
150～250 |
150～300 |
|
Installed Power(kW) |
2×(160～315) |
2×(160～525) |
|
Chain Speed(m/s) |
0.9～1.3 |
0.9～1.5 |
|
Scraper Chain Type |
Medium Double Chain |
|
|
Chain Specification(mm) |
26×92 Round Link Chain |
26×92 Round Link Chain |
|
26/73×92 Compact Chain |
30×108 Round Link Chain |
|
|
30×108 Round Link Chain |
34×126 Round Link Chain |
|
|
Middle Trough Structure |
1500×730×215 |
1500×764×275 |
|
Unloading Method |
End Unloading, Cross Side Unloading |
End Unloading, Cross Side Unloading |
|
Middle Trough Specification(mm) |
Cast-Welded, Integral Casting |
Cast-Welded, Integral Casting |
|
Pin Rail Pitch(mm) |
126 |
126、147、151 |
