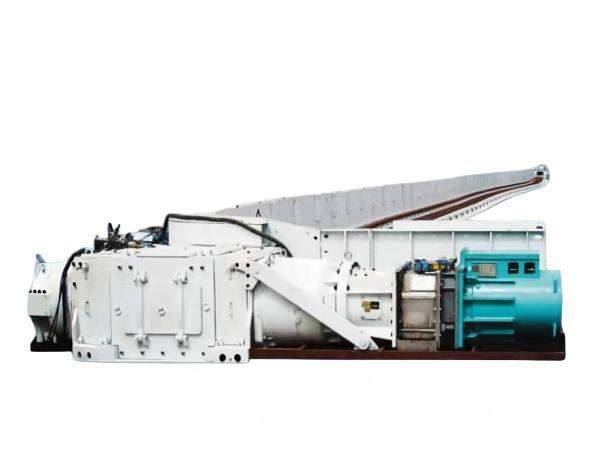

SGZ 1200/1250 Series Scraper Conveyor. According to different geological conditions and production requirements of coal mines, a variety of products with different unloading methods, drive types, installed power, and chain specifications have been developed, which can be equipped with automation monitoring and intelligent expert systems according to the needs of intelligent working face construction. The series products can be matched with SZZ1350 and SZZ1600 Series Transfer Machines, PLM4500, PLM5000, PLM6000, PLM7500 Series Wheel Crushers, and corresponding coal shearers and hydraulic supports. They are mainly used for coal mining in thick and extra-thick coal seam working faces, meeting the production needs of working faces with an annual output of (600~1600) ten thousand tons, and realizing intensive, efficient, safe, green and intelligent production in ten-million-ton ultra-large modern mines.
1/1
SGZ 1200/1250 Series Scraper Conveyor
Negotiable
China
No.1, Jingong Road, Dawukou District, Shizuishan City, Ningxia
0952-2174334
tdbnjt@163.com
Product Introduction
Product Parameters
| Item | SGZ1200 Series | SGZ1250 Series |
|---|---|---|
| Conveying Capacity (t/h) | 3000 ~ 3600 | 3600 ~ 4000 |
| Design Length (m) | 250 ~ 350 | 300 ~ 450 |
| Installed Power (kW) | 2 × (700 ~ 1600) 3 × (700 ~ 1400) |
2 × (855 ~ 2000) 3 × (700 ~ 1600) 2000+3000 |
| Chain Speed (m/s) | 1.2 ~ 1.8 | 1.2 ~ 1.8 |
| Scraper Chain Type | Medium Double Chain | |
| Chain Specification (mm) | Φ48 × 152 Compact Chain Φ52 × 170 Compact Chain |
Φ48 × 152 Compact Chain Φ52 × 170 Compact Chain Φ56/131 × 187 Compact Chain Φ60/135 × 181/197 Compact Chain |
| Middle Trough Specification (mm) | 1750 × 1200 × 365 (385/400) 2050 × 1200 × 400 |
1750 × 1250 × 390 2050 × 1250 × 440 2400 × 1250 × 440 |
| Middle Trough Structure | Cast-Welded, Integral Cast | |
| Pin Rail Pitch (mm) | 147, 172, 176 | 147, 172, 176, 201 |
| Unloading Method | End Discharge, Cross Side Discharge | |
