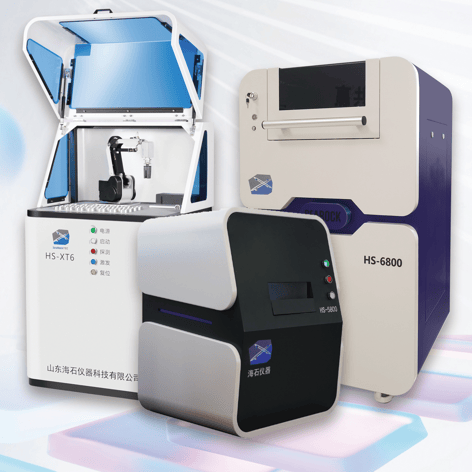

X-ray fluorescence spectrometer

EXW
$29,793.83-148,969.13 /set
China
Inside Guoke Equipment Science and Technology Park, No.17 Jingba Road, Laishan District, Yantai City, Shandong Province
13963874931
+8613963874931
Online Contact
Favorite

Product Introduction

Shandong Searock Instruments' X-ray fluorescence spectrometer is dedicated to providing professional and reliable XRF chemical composition analysis solutions for industries such as glass, refractory materials, metal and non-metallic mining, steel, non-ferrous smelting, ferroalloys, cement, coatings, petrochemicals, archaeological identification, solid waste fly ash, rock wool, etc.



  1. Working Principle



X-ray tube - sample - characteristic X-rays of elements - qualitative and quantitative determination of chemical composition in materials based on the energy and intensity of characteristic X-rays.

Technical Parameters

HS-6800 Performance Features

→Extremely low detection limit and outstanding stability

Extremely low detection limit: Accurately detect trace elements with ease, meeting high-sensitivity requirements.

→Outstanding stability: System design ensures high performance and data accuracy even after long-term operation.

→Full-spectrum intelligent scanning detection method

→Non-destructive analysis: Utilizing full-spectrum scanning technology, precise elemental content analysis can be completed without sample damage.

→Intelligent operation: Automatically optimize detection parameters to enhance efficiency and accuracy.

→High-efficiency sample processing capacity

→10-sample position design: Simultaneously detect 10 samples at once, significantly improving work efficiency.

→Fast analysis: Time-saving and labor-saving, suitable for high-throughput detection needs.

→Broad elemental detection range

Comprehensive coverage: From fluorine (F) to uranium (U), meeting the detection requirements of trace and major elements in various industries.



→High-end configuration

German LE detector: Enhances light element detection capability by tens of times, ensuring accuracy.

→High-performance multi-target material X-ray source: Stable operation for up to 50,000 hours, combining reliability and durability.

→Carefully designed to protect core components

Core mechanism top-mounted design: Effectively prevents physical damage and extends equipment lifespan.

→Elastic sample box design: Ensures the optimal distance between samples and the X-ray source, guaranteeing data stability and accuracy.

→Summary of product advantages

Efficient and convenient: 10-sample position design and fast analysis capability meet the needs of large-scale detection.

Precise and reliable: Extremely low detection limit and full-spectrum scanning technology ensure the accuracy of detection results.

Durable and stable: High-end configuration and protective design extend equipment lifespan and reduce maintenance costs.



Main Technical Parameters

  • Detector

Ø Typical Resolution: 121ev

Ø Output Counting Rate 3000KCPS

Ø Peak-to-back ratio≥25000:1,Peak-to-tail ratio>1800

Ø Window features: Ultra-thin window, enhancing the signal collection intensity of light elements.

Ø Processor:Original imported multi-channels data acquisition.

(2)X-ray Tube

Ø High Voltage : 0-50KvContinuously adjustable.

Ø Current: 0-4000uAcontinuously adjustable.

Ø Power:50W

Ø Stability: 8h 0.2%



(3)High Pressure Producer

Ø Input voltage:24VDC

Ø Input Current: 4A,10A,25A(match different X-ray tube)

Ø Output voltage:50Kv,60Kv,85Kv 0~4mA

Ø Maximum power:50W,75W,200W

Ø Stability:8hour 0.05%

(4)Intelligent Circuit Control( Siemons of Germany PLC)

Ø Output power: 2个100kHz

Ø High speed counter:Totally 4,Four at 200 kHz single-phase and two at 100 kHz single-phase.

Input points:12

Ø Counter/Timer:256

Ø Supply current of sensor:300mA



Spectral analysis system control and data processing system

Ø 16-bit analog-to-digital converter

Ø 24 inches display

Ø Branded computer

Ø 512GSolid state dish

Ø Multi-function standard Keyboard

Ø Laser Printer

Dimensions

Ø Length*Width*Height:700mm*620mm*1300mm

Ø Weight:about 80 kg

Power Supply Requirement

Ø 220V±10% 50Hz

 Work Environment

Ø Temperature Range:5—30℃。

Ø Relative Humidity doesn’t exceed 80%
